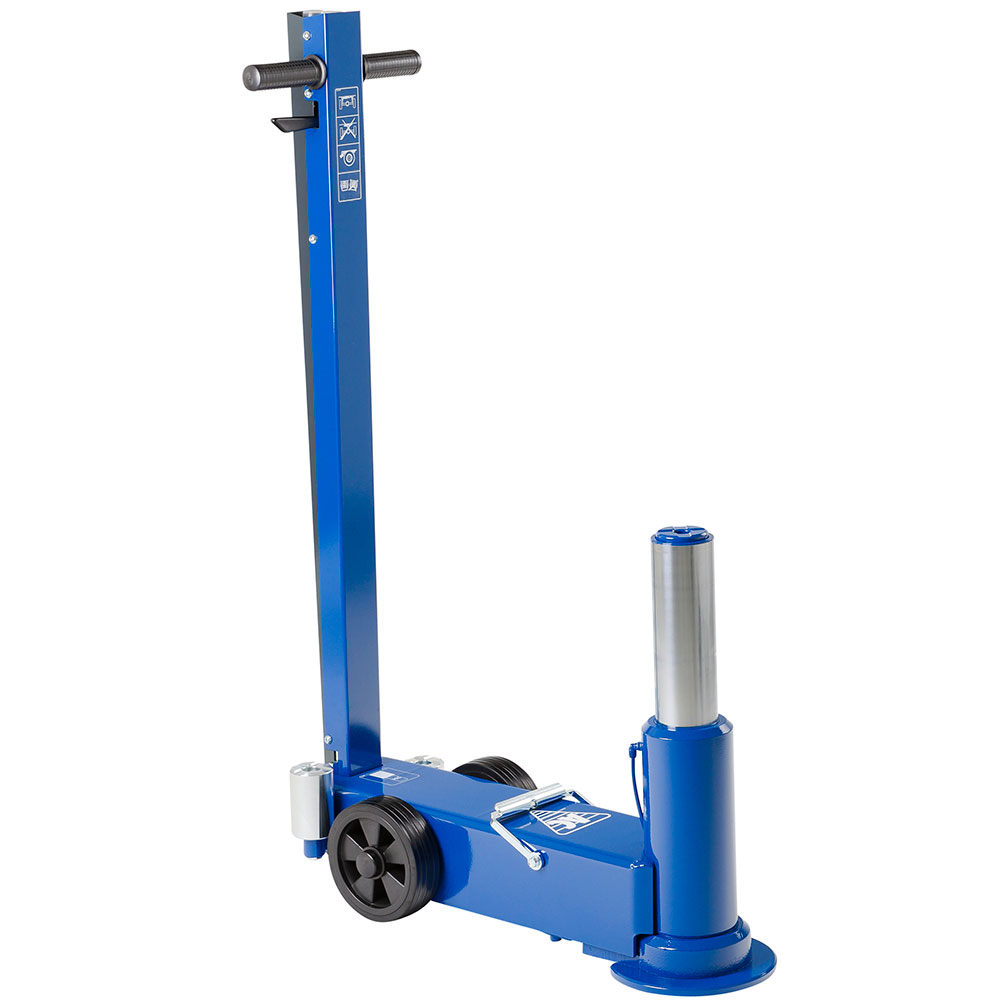

AC Hydraulic Inc. 25-1H Single Stage Air Hydraulic Jack for High Clearance Applications, 55,000 Lb Capacity
AC Hydraulic Inc. 25-1H Single Stage Air Hydraulic Jack for High Clearance Applications, 55,000 Lb Capacity
Order No. ACH-25-1H

List Price: $3,707.00
Price: $2,965.60
Availability: In Stock

  • Minimum height of 14.21 in.
  • Maximum height of 24.06 in., the F250 (optional) extension offers a total extended height of 33.90 in.
  • Hard chromium plated ram for long life
  • Built-in overload valve and dead man’s release for optimum safety whilst lifting and lowering
  • Ergonomic handle with push buttons
  • Extend the maximum lifting height with an additional 1.97 or 3.94 in.
  • Included Accessories: Extension - F250; Jack saddle - FW; V-saddle - FW1-90; V-saddle - FW1-130; Extension - F50; Extension - F100
  • 10 year warranty on frame, chassis, and steel structures; 3 year warranty on the hydraulic system (pump and cylinder)
  • ISO 9001 certified

Specifications

25-1HUS Units
Capacity55,000 lbs
Minimum Start Height14.21″
Maximum Lift Height24.06″
PowerAir/Hydraulic
Frame Length32.17″
Handle Length45.67″
Width9.06″
Width with Wheels12.28″
Air Supply130-145 psi
Air Consumption12.40 cfm
Weight157 lbs
Item Number4560000

  • Weight:  157.00 lbs
