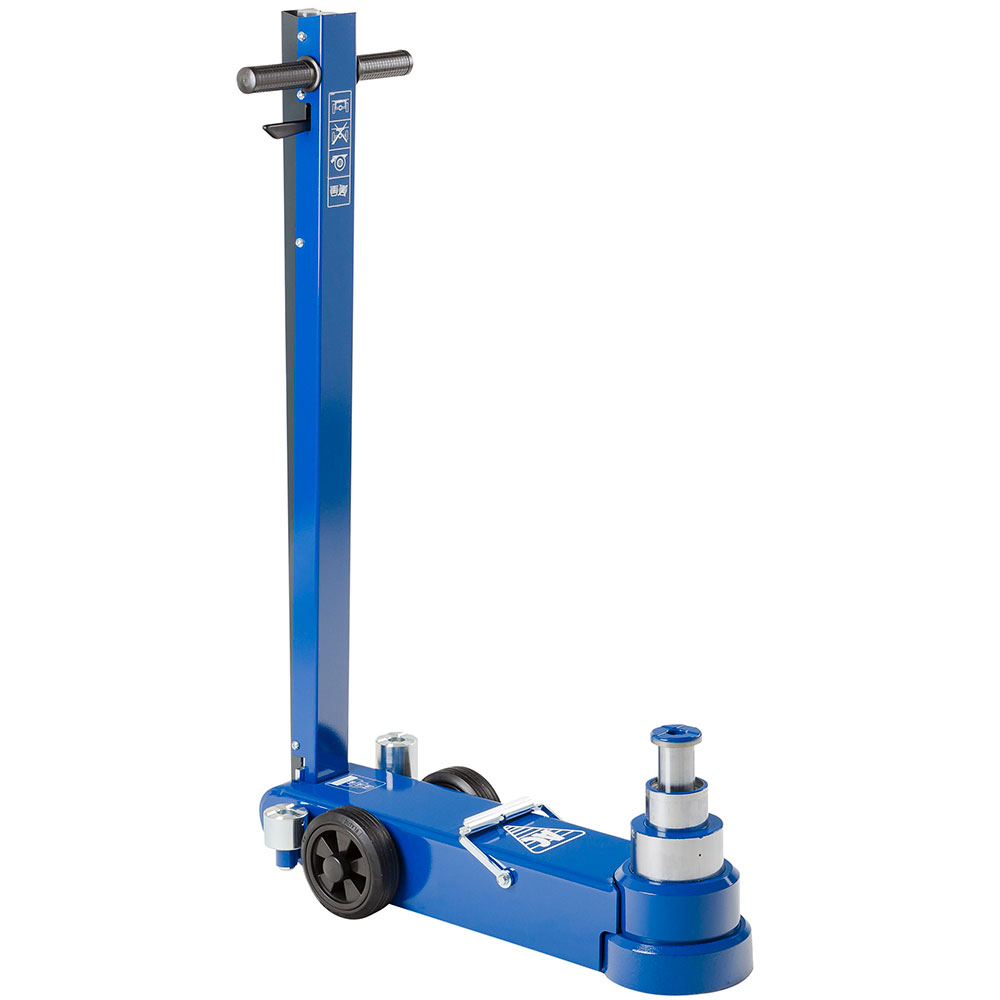

AC Hydraulic Inc. 50-3 3-Stage Air Hydraulic Jack for Low Buses, Trucks and Other Low Clearance Vehicles, 110,000 Lb Capacity
AC Hydraulic Inc. 50-3 3-Stage Air Hydraulic Jack for Low Buses, Trucks and Other Low Clearance Vehicles, 110,000 Lb Capacity
Order No. ACH-50-3

List Price: $4,255.00
Price: $3,404.00
Availability: In Stock

  • Minimum height of only 5.94 in. combined with a high lifting capacity
  • Telescopic cylinders ensure a high capacity combined with a low minimum height
  • Designed for heavy-duty, intensive commercial use
  • Built-in overload valve and dead man’s release for optimum safety whilst lifting and lowering
  • Ergonomic handle with push buttons
  • Extend the maximum lifting height with an additional 1.97 or 3.94 in.
  • Included Accessories: Extension - F250; Jack saddle - FW; V-saddle - FW1-90; V-saddle - FW1-130; Extension - F50; Extension - F100
  • 10 year warranty on frame, chassis, and steel structures; 3 year warranty on the hydraulic system (pump and cylinder)
  • ISO 9001 certified

Specifications

50-3US Units
Capacity110,000 lbs
Minimum Start Height5.94″
Maximum Lift Height13.11″
PowerAir/Hydraulic
Frame Length31.89″
Handle Length45.67″
Width7.95″
Width with Wheels12.13″
Air Supply130-145 psi
Air Consumption12.40 cfm
Weight148 lbs
Item Number4500000

  • Weight:  148.00 lbs
