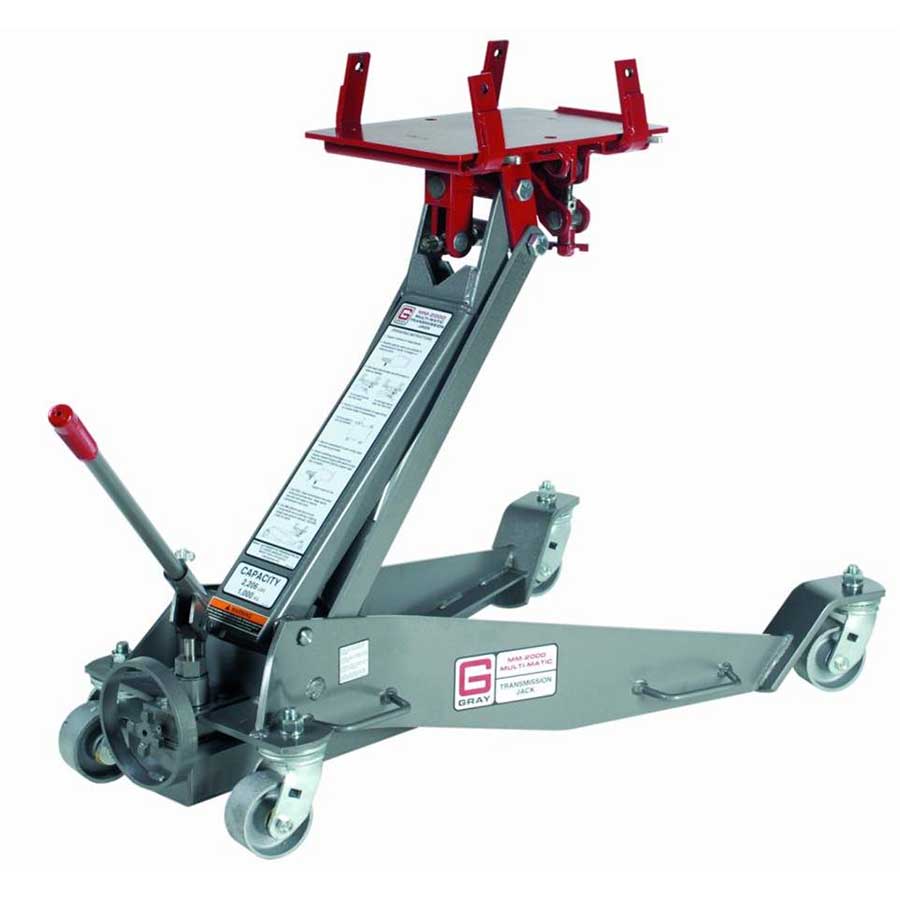

Gray Manufacturing USA MM-2000 Truck Floor Transmission Jack, 2206 Lb
Gray Manufacturing USA MM-2000 Truck Floor Transmission Jack, 2206 Lb
Order No. GRM-MM-2000

List Price: $3,350.00
Price: $3,225.00
Availability: In Stock

The Gray MM-2000 transmission jack has been continually manufactured since the 1970s and has become the industry’s most desired choice for truck component installation and removal.

The MM-2000 transmission jack has 2,000 lbs. of capacity to handle the largest truck components. It is available in straight hydraulic or air/hydraulic. The MM2000 offers the easiest adjusting head plate, complete with four adjustable quick-ratcheting brackets and fore and aft tilt. The narrow frame provides excellent balance without occupying excessive floor space and the heavy duty casters stand up to the rigorous shop use.

  • Narrow frame
  • Acme threaded adjustments
  • American-made transmission jack adapters
  • TCHS kit for versatility
  • 100% factory tested

Specifications

MM-2000 US Units Metric
Capacity 2,206 lbs 1,000.63 kg
Minimum Start Height 8″ 20.32 cm
Maximum Lift Height 34″ 86.36 cm
Power Manual/Hydraulic or Air/Hydraulic Manual/Hydraulic or Air/Hydraulic
Required Air Pressure 90 – 200 PSI 6.2 – 13.8 Bar
Power (Ram) Travel 26″ 66.04 cm
Head Plate Dimension 11 1/2″ x 17″ 29.21 cm x 43.18 cm
Tilt Forward 10° 10°
Tilt Rear 10° 10°
Tilt Side to Side 10° 10°
Overall Width 28 1/4″ 71.76 cm
Overall Length 44 1/2″ 113.03 cm
Handle Length 24 1/4″ 62.23 cm
Caster Diameter 4″ 10.16 cm
Shipping Weight 305 lbs 138.35 kg
  • Weight:  305.00 lbs
