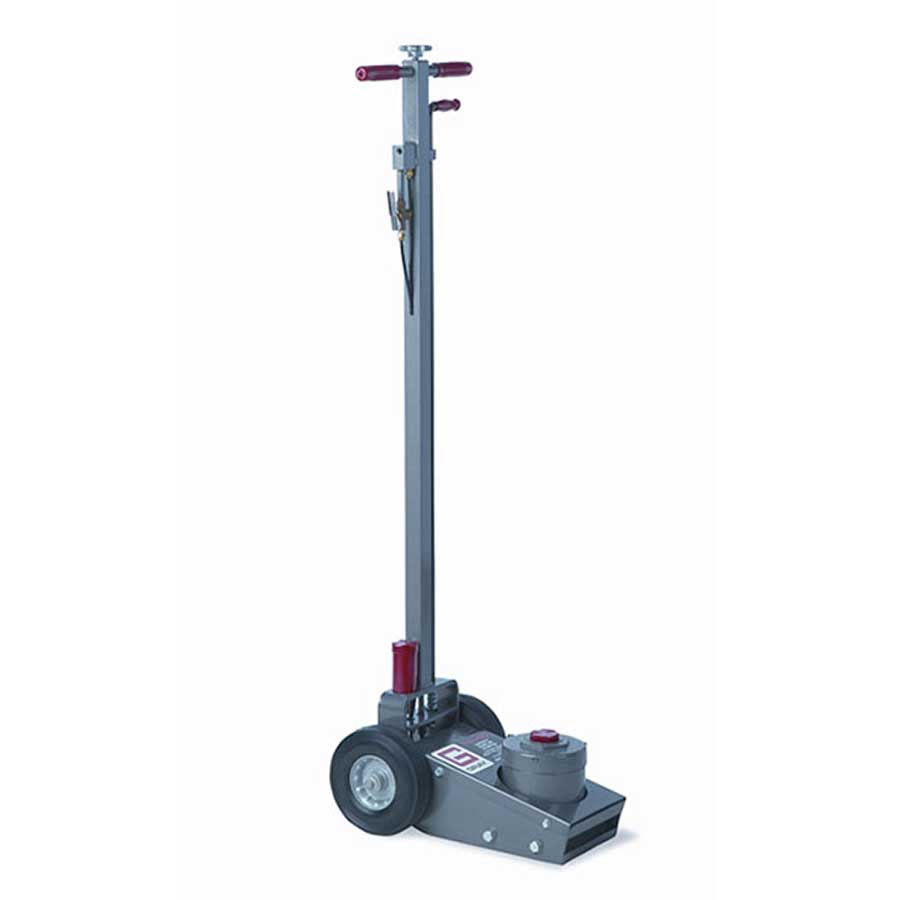

Gray Manufacturing USA TSL-50 Truck Axle Jack, 25 Tons
Gray Manufacturing USA TSL-50 Truck Axle Jack, 25 Tons
Order No. GRM-TSL-50

List Price: $2,400.00
Price: $1,954.00
Availability: In Stock
All Gray Qualifies for Free Shipping!

Gray Manufacturing's TSL air jacks have become a product known throughout the industry as the most reliable and long lasting truck lift system of its type available on the market. The compact, field-ready design and low starting height make it ideal for shop use or road service work.

The TSL-50 truck lift offers 50,000 lbs. of capacity, creating incredible flexibility for a shop operation. The unit incorporates an air driven motor that powers the hydraulic system, which eliminates the manual pumping process. The American-made TSL-50 incorporates Black Hard Coating™ and anti-corrosive internal system to protect the air jack from the elements to provide the user with a long lasting, reliable service life. The air assisted ram retract, multiple starting heights with the acme threaded screw extension and welded steel frame construction create a versatile and reliable air jack.

  • Black Hard Coating™ – protects ram from rust and corrosion
  • Acme threaded screw adjustment for flexible start height
  • Modular design for easy repair
  • Air retract ram for ease of use
  • Long handle design for hard-to-engage vehicles
  • Large rubber wheels for easy movement

Specifications

TSL-50US Units Metric
Maximum Capacity50,000 lbs22,679.62 kg
Minimum Start Height ,8″20.32 cm
Maximum Lift Height21″53.34 cm
PowerAir/HydraulicAir/Hydraulic
Required Air Pressure90-200 PSI6.2-13.8 Bar
Stroke5 1/8″13.02 cm
Extension Screw Adjustment4 7/8″12.38 cm
Frame Width12″30.48 cm
Frame Length20″50.80 cm
Wheel Diameter8″20.32 cm
Handle Length53″134.62 cm
Shipping Weight124 lbs56.25 kg

  • Weight:  124.00 lbs
