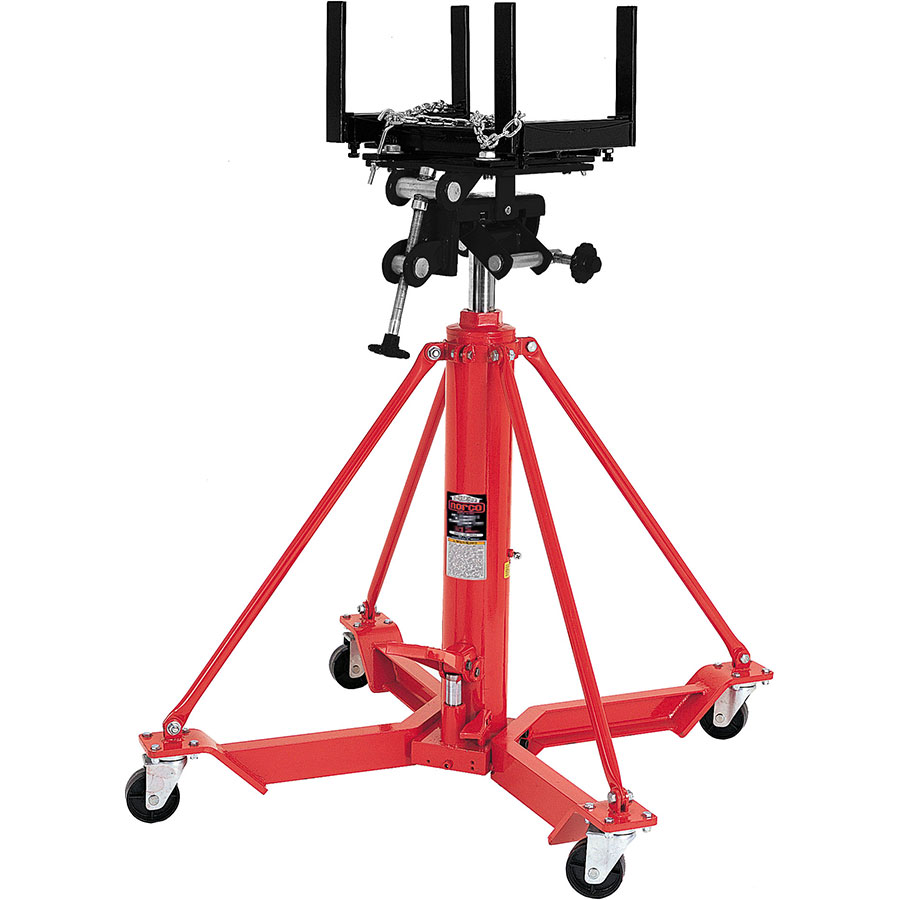

Norco Industries 72700A 1 Ton Capacity Under Hoist Truck Transmission Jack
Norco Industries 72700A 1 Ton Capacity Under Hoist Truck Transmission Jack
Order No. NOR-72700A

List Price: $2,962.05
Price: $2,702.94
Availability: In Stock

Designed for the removal, installation and transportation (in the lowered position) of heavy duty truck transmissions that are raised by an in-ground or above-ground lift.

  • Fully adjustable universal saddle with adjustable corner brackets and safety chain.
  • Safety overload system prevents jack from being used beyond the ASME/PASE load-limiting standard.
  • 2” diameter, flash chromed, single stage ram provides added stability throughout the entire lift range.
  • Foot operated pump and lowering pedals allow use of both hands to position and align saddle with transmission.
  • Wide base with four 3-7/8” diameter heavy duty swivel ball bearing caster wheels provides stability and easy maneuvering.

Dimensions

Low Lift Height45.75"
High Lift Height74.25"
Base Dimensions38" x 38"
Shipping Weight292 lbs.

WARNING: Cancer & Reproductive Harm. www.P65Warnings.ca.gov
  • Weight:  292.00 lbs
