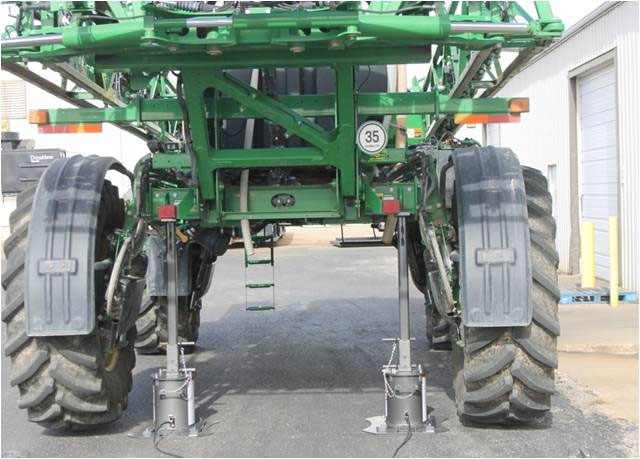

The ASBJ-2000 agricultural sprayer bottle jack is the perfect solution for spring, tire and brake work on agricultural sprayers.
The ABSJ-2000 can be used individually or in pairs to double the lifting capacity. The 100% air operated jack provides years of maintenance free use and doubles as a support stand. The ASBJ-2000's removable handle and wheels makes the air jack easy to place and store.
Specifications
ASBJ-2000 | US Units |
---|---|
Capacity | 20,000 lbs |
Minimum Start Height | 49 5/8" |
Maximum Lift Height | 66 5/8" |
Saddle Width | 6 1/4" |
Wide Saddle Width | 9 7/8" |
Pin Increments | 2 1/2" |
Required Air Pressure | 200 PSI |
Stroke | 9 5/8" |
Width | 25 7/8" |
Length | 27 1/2" |
