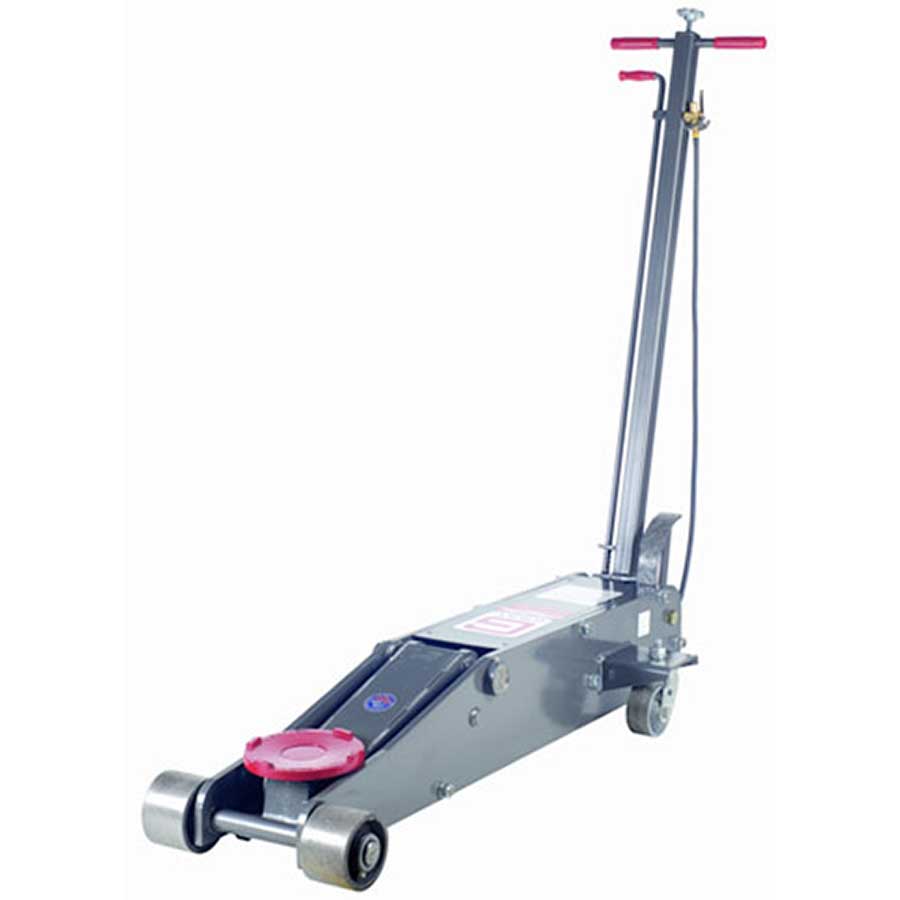

Gray Manufacturing USA FSJ-200 Service Jack, 10 Tons
Gray Manufacturing USA FSJ-200 Service Jack, 10 Tons
Order No. GRM-FSJ-200

List Price: $5,495.00
Price: $5,365.00
Availability: In Stock
All Gray Qualifies for Free Shipping!

The FSJ-200 floor service jack sets the standard for floor jacks. The FSJ-200 has a 20,000 lbs. capacity and provides the user with the reliability and quality needed to keep their operation going.

The FSJ-200 features a low start height, providing the user with the flexibility to accommodate a variety of vehicles. The heavy duty floor jack has an American-designed and manufactured steel frame that stands up to the harshest shop environments. The FSJ-200 is air operated for ease of use, but includes a manual pump feature for versatility. The large front wheels and long-life commercial duty rear swivel casters allows easy portability and durability.

  • Gray manufactures the entire heavy duty floor jack – easy replaceable power unit
  • Grease points for easy maintenance and longevity
  • Manual or air operated
  • Unique head plate design
  • Multiple positioning handle
  • Each unit is 100% factory tested

Specifications

FSJ-200 US Units Metric
Maximum Capacity 20,000 lbs 9,071.85 kg
Minimum Start Height 7″ 17.78 cm
Maximum Lift Height 27″ 68.58 cm
Power Air/Hydraulic/Manual Air/Hydraulic/Manual
Required Air Pressure 90-175 PSI 6.2-12 Bar
Chassis Height 10” 25.40 cm
Chassis Length 53 ½” 135.89 cm
Handle Length 47″ 119.38 cm
Overall Width 21 7/8” 55.56 cm
Overall Length 101 ¾” 258.45 cm
Overall Reach 93” 43.50 cm
Front Caster Diameter 5” 12.70 cm
Rear Swivel Caster Diameter 4” 10.16 cm
Saddle Diameter 8” 20.32 cm
Front Width Caster to Caster 17 1/8” 43.50 cm
Rear Width Bracket to Bracket 20 1/8” 51.12 cm
Shipping Weight 410 lbs 185.97 kg
  • Weight:  410.00 lbs
