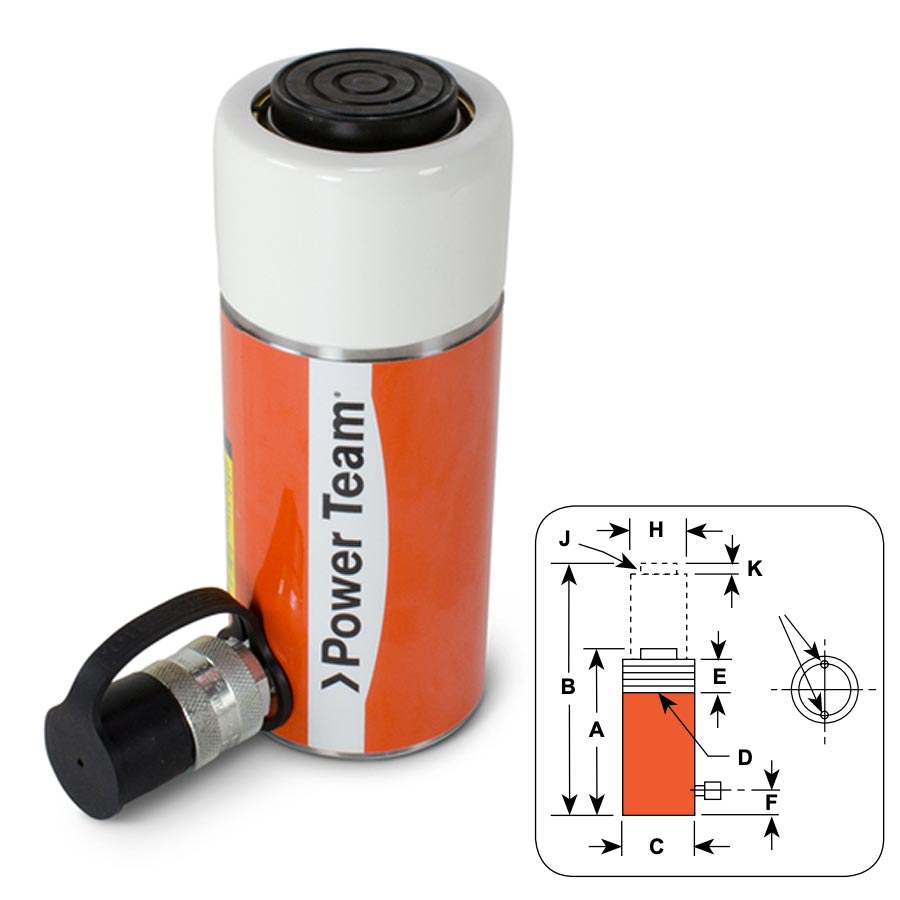

SPX FLOW Power Team C258C Cylinder 25 Ton, Single Acting, 8-1/4" Stroke
SPX FLOW Power Team C258C Cylinder 25 Ton, Single Acting, 8-1/4" Stroke
Order No. SPX-C258C
List Price: $1,296.00
Price: $1,238.33
Availability: In Stock

RUGGED, HIGH QUALITY CYLINDER USED FOR LIFTING AND PRESSING.

  • Aluminum bronze bearing reduces wear caused by off-center loads.
  • Single-Acting, Spring-Return.
  • Maximum sized springs speed piston return and increase spring life.
  • Collar threads are standard on all C-Series models, simplifying fixturing applications.
  • Removable rubber boots protect collar threads during transport and storage.
  • Solid steel cylinder body for durability.
  • Chrome plated piston rod resists wear and corrosion.
  • Wide range of accessories available that mount onto the piston rod, collar, or base.
  • Base mounting holes standard on 5 through 55 ton cylinders and optional on 75 and 100 ton cylinders.
  • A 3/8" NPTF female half coupler is standard.
  • Complies with ANSI / ASME B30.1 Safety Standards.

Specifications

A - RETRACTED HEIGHT (IN. [MM])12.75 [323,9]
B - EXTENDED HEIGHT (IN. [MM])21.00 [533,4]
C - OUTSIDE DIAMETER (IN. [MM])3.38 [85,7]
D - COLLAR THREAD (IN.)3 5
E - PISTON COLLAR THREAD LENGTH (IN. [MM])1.94 [49,2]
F - BASE TO PORT (IN. [MM])1.00 [25,4]
H - PISTON ROD DIAMETER (IN. [MM])2.25 [57,2]
J - PISTON ROD INTERNAL THREAD AND DEPTH (IN.)1 1
K - ROD PROTRUSION (IN. [MM])0.38 [9,5]
BORE DIAMETER (IN. [MM])2.56 [65,1]
CYLINDER CAPACITY (TONS)25
CYLINDER EFFECTIVE AREA (SQ. IN. [CM²]5.15 [33,2]
INTERNAL PRESSURE AT CAPACITY (PSI)9699
OIL CAPACITY (CU. IN. [CM³])42.50 [697]
STROKE (IN. [MM])8.25 [209,6]
TONS AT 10,000 PSI [METRIC TONS AT 700 BAR]25.80 [23,4]
WEIGHT (LBS. [KG])25.60 [11,6]

  • Weight:  25.60 lbs
