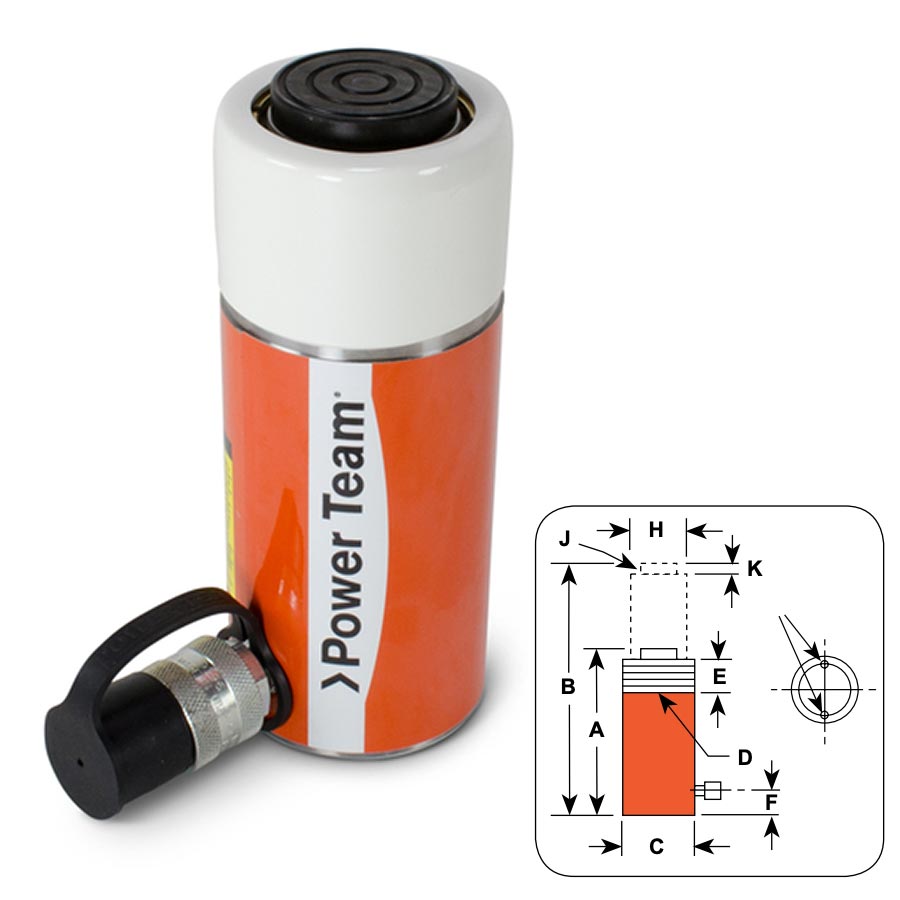

SPX FLOW Power Team C554C SPX FLOW Power Team C554C Cylinder 55 Ton, Single Acting, 4-1/4" Stroke

SPX FLOW Power Team C554C Cylinder 55 Ton, Single Acting, 4-1/4" Stroke

Order No. SPX-C554C

List Price: $1,629.99

Price: $1,557.45

Availability: In Stock

RUGGED, HIGH QUALITY CYLINDER USED FOR LIFTING AND PRESSING.

Aluminum bronze bearing reduces wear caused by off-center loads.
Single-Acting, Spring-Return.
Maximum sized springs speed piston return and increase spring life.
Collar threads are standard on all C-Series models, simplifying fixturing applications.
Removable rubber boots protect collar threads during transport and storage.
Solid steel cylinder body for durability.
Chrome plated piston rod resists wear and corrosion.
Wide range of accessories available that mount onto the piston rod, collar, or base.
Base mounting holes standard on 5 through 55 ton cylinders and optional on 75 and 100 ton cylinders.
A 3/8" NPTF female half coupler is standard.
Complies with ANSI / ASME B30.1 Safety Standards.

Specifications

A - RETRACTED HEIGHT (IN. [MM])	9.13 [231,8]
B - EXTENDED HEIGHT (IN. [MM])	13.38 [339,7]
C - OUTSIDE DIAMETER (IN. [MM])	5.00 [127,0]
D - COLLAR THREAD (IN.)	5-12
E - PISTON COLLAR THREAD LENGTH (IN. [MM])	2.19 [55,6]
F - BASE TO PORT (IN. [MM])	1.38 [34,9]
H - PISTON ROD DIAMETER (IN. [MM])	3.13 [79,4]
J - PISTON ROD INTERNAL THREAD AND DEPTH (IN.)	None
K - ROD PROTRUSION (IN. [MM])	0.13 [3,2]
BORE DIAMETER (IN. [MM])	3.75 [95,3]
CYLINDER CAPACITY (TONS)	55
CYLINDER EFFECTIVE AREA (SQ. IN. [CM²]	11.04 [71,2]
INTERNAL PRESSURE AT CAPACITY (PSI)	9959
OIL CAPACITY (CU. IN. [CM³])	46.90 [769]
STROKE (IN. [MM])	4.25 [108,0]
TONS AT 10,000 PSI [METRIC TONS AT 700 BAR]	55.20 [50,1]
WEIGHT (LBS. [KG])	41.30 [18,7]
