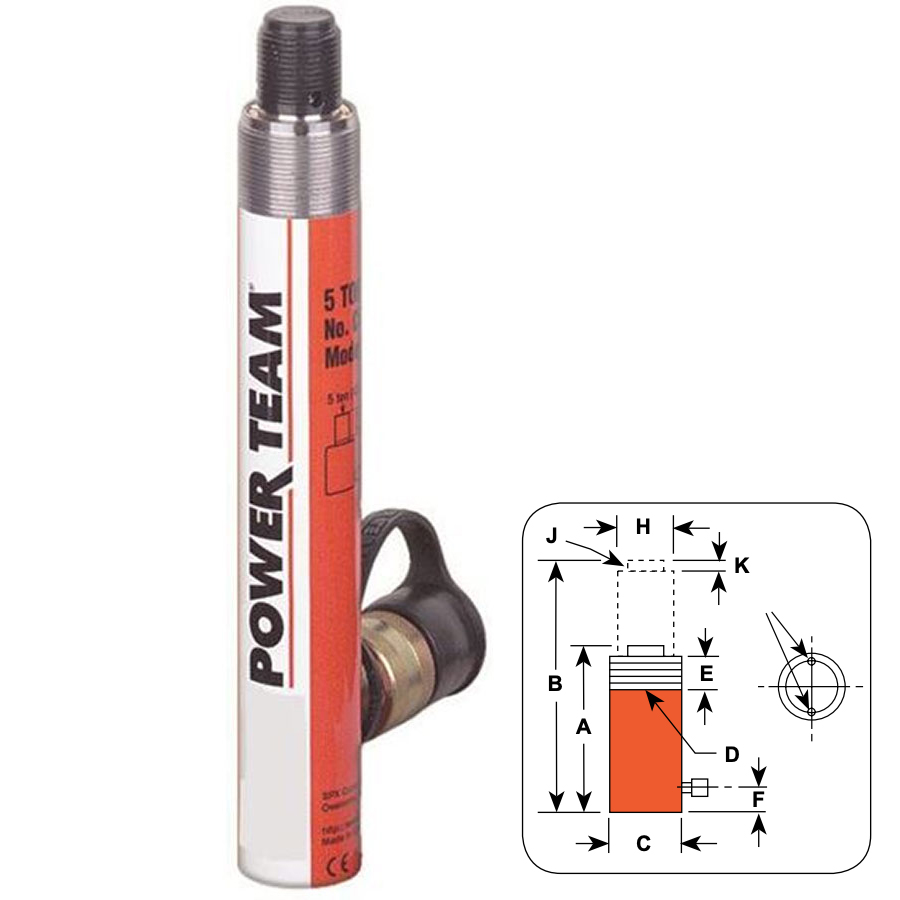

SPX FLOW Power Team C1010CBT Cylinder 10 Ton, Single Acting, 10-1/8" Stroke, Threaded End
SPX FLOW Power Team C1010CBT Cylinder 10 Ton, Single Acting, 10-1/8" Stroke, Threaded End
Order No. SPX-C1010CBT
List Price: $1,123.75
Price: $827.14
Availability: In Stock

RUGGED, HIGH QUALITY CYLINDER USED FOR LIFTING AND PRESSING.

  • Aluminum bronze bearing reduces wear caused by off-center loads.
  • Single-Acting, Spring-Return.
  • Maximum sized springs speed piston return and increase spring life.
  • Collar threads are standard on all C-Series models, simplifying fixturing applications.
  • Removable rubber boots protect collar threads during transport and storage.
  • Solid steel cylinder body for durability.
  • Chrome plated piston rod resists wear and corrosion.
  • Wide range of accessories available that mount onto the piston rod, collar, or base.
  • Base mounting holes standard on 5 through 55 ton cylinders and optional on 75 and 100 ton cylinders.
  • A 3/8" NPTF female half coupler is standard.
  • Complies with ANSI / ASME B30.1 Safety Standards.

Specifications

A - RETRACTED HEIGHT (IN. [MM])15.50 [393,7]
B - EXTENDED HEIGHT (IN. [MM])25.63 [650,9]
C - OUTSIDE DIAMETER (IN. [MM])2.25 [57,2]
D - COLLAR THREAD (IN.)2 1
E - PISTON COLLAR THREAD LENGTH (IN. [MM])1.13 [28,6]
F - BASE TO PORT (IN. [MM])1.69 [42,9]
H - PISTON ROD DIAMETER (IN. [MM])1.50 [38,1]
K - ROD PROTRUSION (IN. [MM])1.06 [27,0]
P - PISTON ROD THREAD (IN.)1 1
Q - INTERNAL BASE THREAD (NPSM)1 1
BORE DIAMETER (IN. [MM])1.69 [42,9]
CYLINDER CAPACITY (TONS)10
CYLINDER EFFECTIVE AREA (SQ. IN. [CM²]2.24 [14,4]
INTERNAL PRESSURE AT CAPACITY (PSI)8948
OIL CAPACITY (CU. IN. [CM³])22.90 [375,0]
STROKE (IN. [MM])10.13 [257,2]
TONS AT 10,000 PSI [METRIC TONS AT 700 BAR]11.20 [10,2]
WEIGHT (LBS. [KG])13.90 [6,3]

  • Weight:  13.90 lbs
