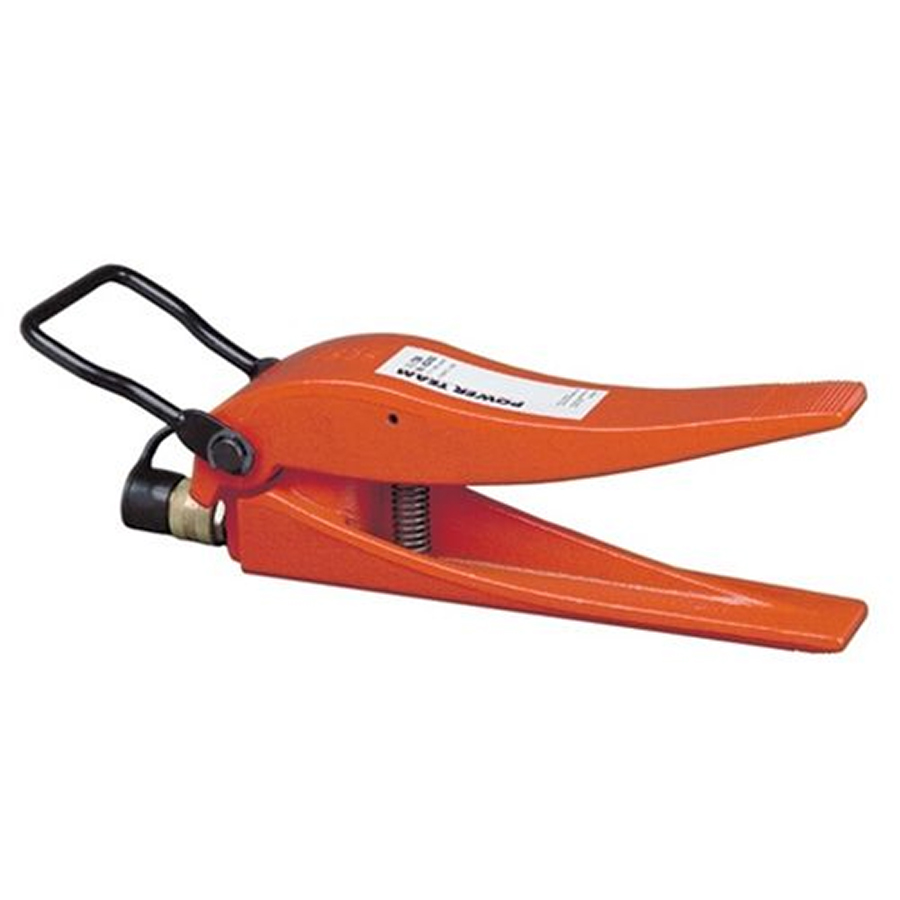

• Use to lift machines, to position and align heavy pipes and flanges for easier bolting or as a clamp—spread concrete forms or rebar or preform straightening jobs
• Conforms to ASME B30.1 standard
• High strength alloy steel forged upper and lower jaws
• High strength alloy steel forged upper and lower jaws
• Jaws are spring return—retract automatically when pressure is released
• Full 3,000 lb. capacity at 10,000 psi with 11-1/2" spread
• Can be "dead-ended" at 11-1/2" spread at full load Tested to conform to ASME B30.1 standard
• Needs only 1-1/4" clearance to engage jaws
• Uses a standard 3/8" high flow coupler

Specifications
