SPX FLOW Power Team P55 Hydraulic Hand Pump, Single Speed, .160 Cubic Inch Stroke
SPX FLOW Power Team P55 Hydraulic Hand Pump, Single Speed, .160 Cubic Inch Stroke
Order No. SPX-P55
List Price: $778.75
Price: $694.49
Availability: In Stock

BEST SUITED FOR APPLICATIONS WHERE THERE IS LITTLE OR NO FREE TRAVEL.

  • All metal construction, won't burn through in welding environments
  • Formed metal handle provides less flex, and reduces operator fatigue
  • Convenient fill port on allows pumps to be filled in a horizontal or vertical position
  • Fill cap seal acts as safety valve preventing over-pressurizing of reservoir
  • Relief valve inboard of check valve prevents loads from drifting down
  • Large valve knob gives added control for slowly metering loads down

Specifications

FOR USE WITH CYLINDER TYPESingle-Acting
SPEED1
HANDLE EFFORT (LBS. [KG.])145.0 [66]
RESERVOIR OIL CAPACITY (CU. IN. [CU. CM.])55.0 [902]
RESERVOIR USABLE OIL CAPACITY (CU. IN. [CU. CM.])45.0 [738]
HP MAXIMUM PRESSURE (PSI [BAR])10,000 [700]
HP VOLUME PER STROKE (CU. IN. [CU. CM.])0.160 [2,6]
OIL PORT (IN.).375 NPTF

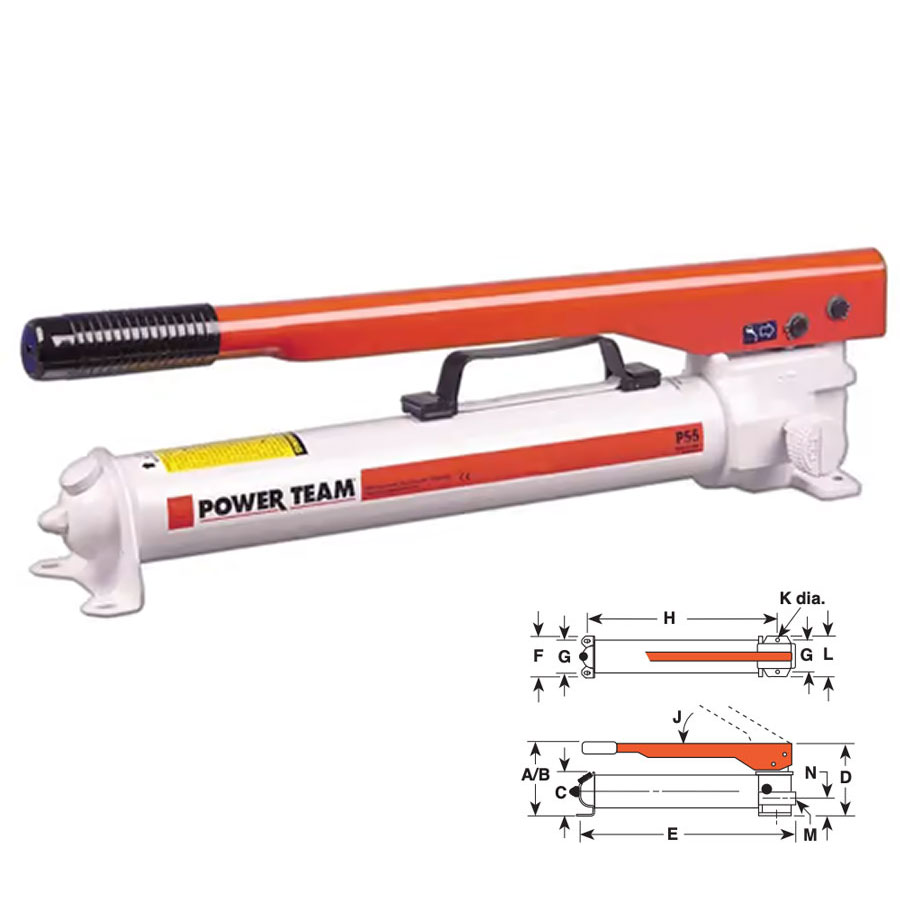

A (IN. [MM.])6.5 [159]
B (IN. [MM.])21.00 [533]
C (IN. [MM.])3.50 [89]
D (IN. [MM.])5.56 [141]
E (IN. [MM.])23.00 [584]
F (IN. [MM.])4.25 [108]
G (IN. [MM.])3.25 [83]
H (IN. [MM.])19.75 [502]
J (DEG.)38
K (IN. [MM.])0.19 [5]
L (IN. [MM.])4.75 [121]
M3
N (IN. [MM.])1.63 [41]
WEIGHT (LBS. [KG.])15.8 [5,5]

  • Weight:  15.80 lbs
