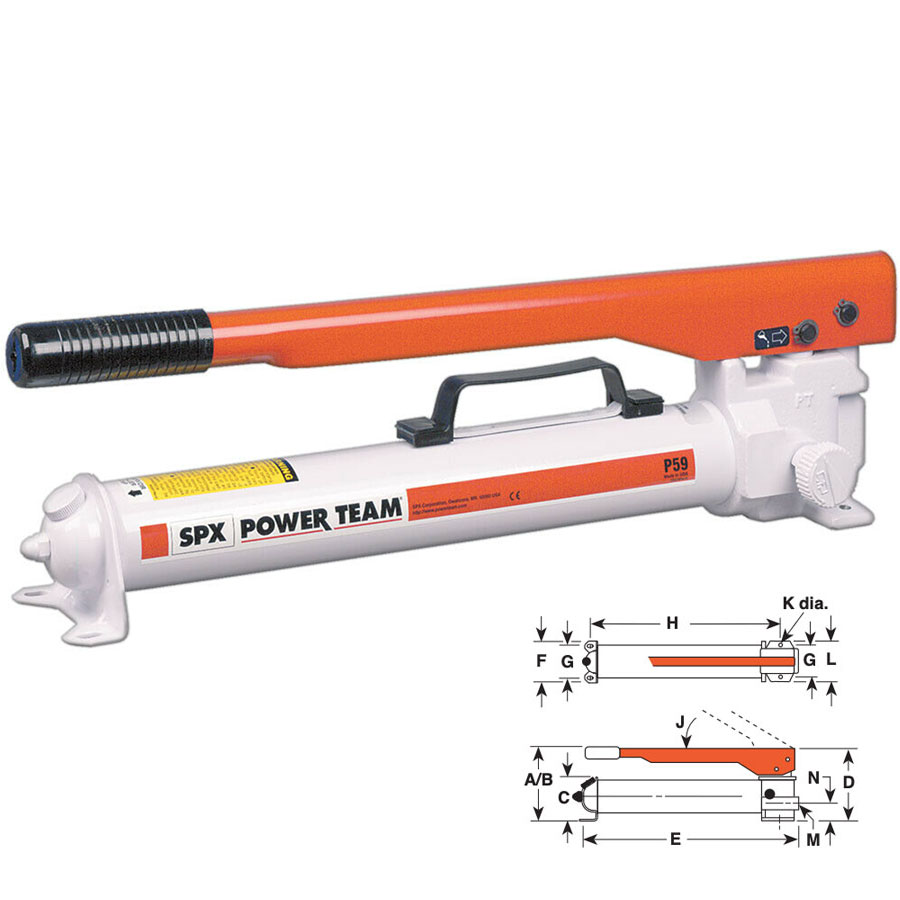

SPX FLOW Power Team P59 SPX FLOW Power Team P59 Hydraulic Hand Pump, Two Speed, .16-.662 Cubic Inch Stroke

SPX FLOW Power Team P59 Hydraulic Hand Pump, Two Speed, .16-.662 Cubic Inch Stroke

Order No. SPX-P59

List Price: $787.50

Price: $702.29

Availability: In Stock

PUMP AUTOMATICALLY SHIFTS INTO THE HIGH PRESSURE LIFT STAGE UPON CONTACT WITH THE LOAD.

All metal construction, won't burn through in welding environments
Two-speed reduces handle strokes so you work faster and easier
Formed metal handle provides less flex, and reduces operator fatigue
Convenient fill port on allows pumps to be filled in a horizontal or vertical position
Relief valve inboard of check valve prevents loads from drifting down
Large valve knob gives added control for slowly metering loads down

Specifications

FOR USE WITH CYLINDER TYPE	Single-Acting
SPEED	2
HANDLE EFFORT (LBS. [KG.])	145.0 [66]
RESERVOIR OIL CAPACITY (CU. IN. [CU. CM.])	55.0 [902]
RESERVOIR USABLE OIL CAPACITY (CU. IN. [CU. CM.])	45.0 [738]
LP MAXIMUM PRESSURE (PSI [BAR])	325 [22]
HP MAXIMUM PRESSURE (PSI [BAR])	10,000 [700]
LP VOLUME PER STROKE (CU. IN. [CU. CM.])	0.662 [10,9]
HP VOLUME PER STROKE (CU. IN. [CU. CM.])	0.160 [2,6]
OIL PORT (IN.)	.375 NPTF
A (IN. [MM.])	7.00 [178]
B (IN. [MM.])	21.00 [533]
C (IN. [MM.])	3.50 [89]
D (IN. [MM.])	5.00 [127]
E (IN. [MM.])	23.00 [584]
F (IN. [MM.])	4.25 [108]
G (IN. [MM.])	3.25 [83]
H (IN. [MM.])	19.75 [502]
J (DEG.)	38
K (IN. [MM.])	0.31 [8]
L (IN. [MM.])	4.75 [121]
M	3
N (IN. [MM.])	1.63 [41]
WEIGHT (LBS. [KG.])	17.2 [7,8]
