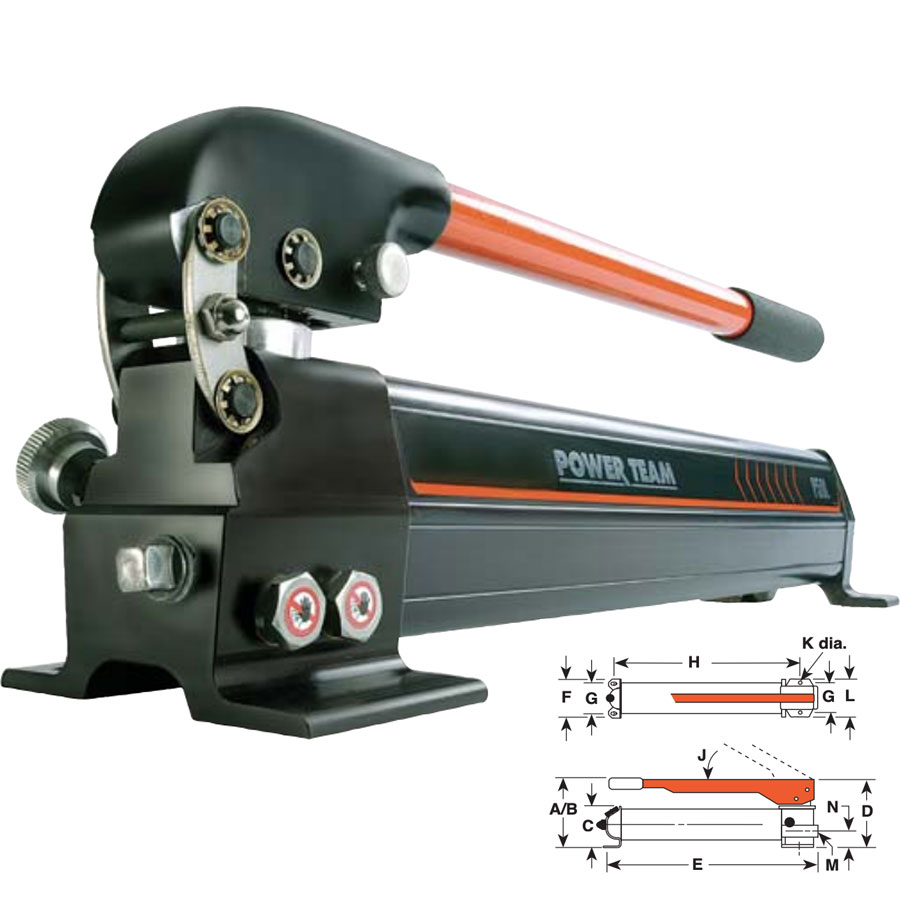

SPX FLOW Power Team P59L SPX FLOW Power Team P59L Hydraulic Hand Pump, Two Speed, .150-.720 Cubic Inch Stroke

SPX FLOW Power Team P59L Hydraulic Hand Pump, Two Speed, .150-.720 Cubic Inch Stroke

Order No. SPX-P59L

List Price: $650.00

Price: $645.47

Availability: In Stock

PUMP AUTOMATICALLY SHIFTS INTO THE HIGH PRESSURE LIFT STAGE UPON CONTACT WITH THE LOAD.

All metal construction, won't burn through in welding environments
Two-speed reduces handle strokes so you work faster and easier
Formed metal handle provides less flex, and reduces operator fatigue
Convenient fill port on allows pumps to be filled in a horizontal or vertical position
Relief valve inboard of check valve prevents loads from drifting down
Large valve knob gives added control for slowly metering loads down
More usable oil volume — use with larger or longer stroke cylinders
True unloading valve set for 850 PSI (59 Bar) provides more efficiency and lower handle force
Link design reduces handle effort by 40%
Durable aluminum reservoir, manifold, and end cap
Ergonomic non-slip handle grip provides more comfort
Spring loaded handle lock incorporated into handle
Includes 2-way valve

Specifications

FOR USE WITH CYLINDER TYPE	Single-Acting
SPEED	2
HANDLE EFFORT (LBS. [KG.])	104.0 [52]
RESERVOIR OIL CAPACITY (CU. IN. [CU. CM.])	69.0 [922]
RESERVOIR USABLE OIL CAPACITY (CU. IN. [CU. CM.])	66.0 [920]
LP MAXIMUM PRESSURE (PSI [BAR])	850 [22]
HP MAXIMUM PRESSURE (PSI [BAR])	10,000 [700]
LP VOLUME PER STROKE (CU. IN. [CU. CM.])	0.720 [10,9]
HP VOLUME PER STROKE (CU. IN. [CU. CM.])	0.150 [2,6]
OIL PORT (IN.)	.375 NPTF
A (IN. [MM.])	7.00 [178]
B (IN. [MM.])	–
C (IN. [MM.])	–
D (IN. [MM.])	–
E (IN. [MM.])	23.00 [584]
F (IN. [MM.])	4.25 [108]
G (IN. [MM.])	3.25 [83]
H (IN. [MM.])	19.75 [502]
J (DEG.)	38
K (IN. [MM.])	0.31 [8]
L (IN. [MM.])	–
M	3
N (IN. [MM.])	1.63 [41]
WEIGHT (LBS. [KG.])	8.9 [7,8]
