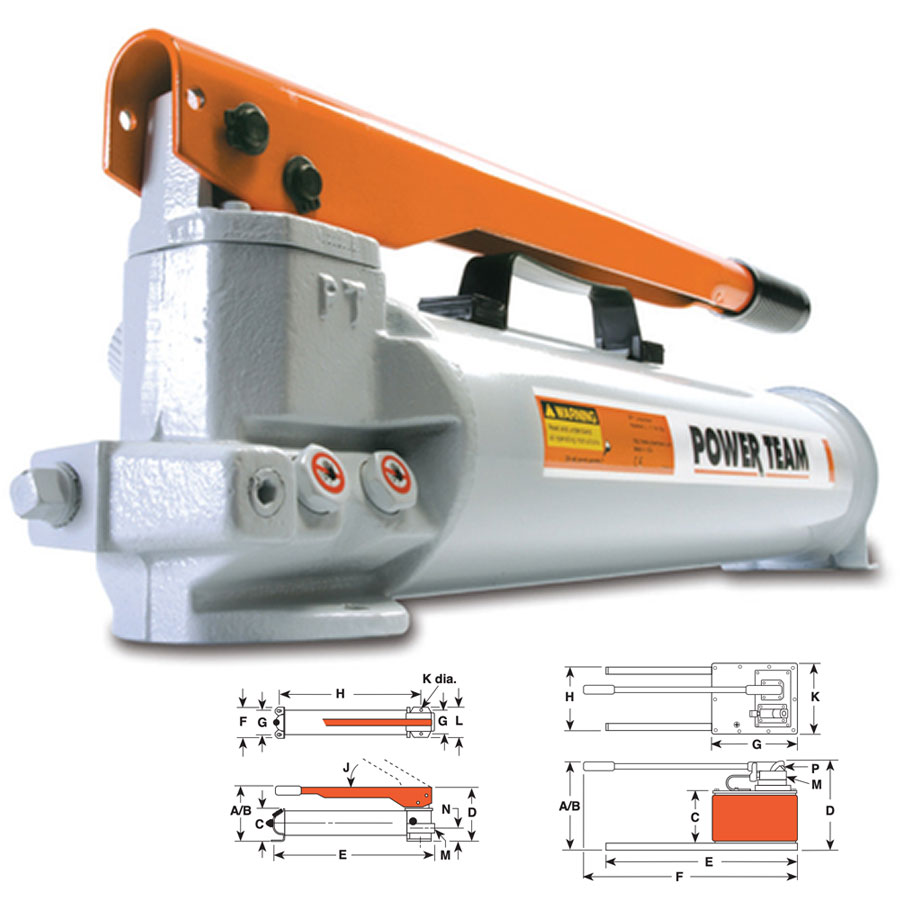

SPX FLOW Power Team P157 SPX FLOW Power Team P157 Hydraulic Hand Pump, Two Speed, .160-.650 Cubic Inch Stroke

SPX FLOW Power Team P157 Hydraulic Hand Pump, Two Speed, .160-.650 Cubic Inch Stroke

Order No. SPX-P157

List Price: $1,195.00

Price: $1,065.70

Availability: In Stock

BEST SUITED FOR APPLICATIONS WHERE THERE IS LITTLE OR NO FREE TRAVEL.

Rugged all metal construction for strength and durability that won't burn through in welding environments
Heavy-duty, formed metal handle provides less flex, and less operator fatigue than round or composite handles
Fill cap seal acts as safety valve preventing over-pressurizing of reservoir
Relief valve inboard of check valve prevents loads from drifting down
Large valve knob gives added control for slowly metering loads down

Specifications

FOR USE WITH CYLINDER TYPE	Single-Acting
SPEED	2
HANDLE EFFORT (LBS. [KG.])	140.0 [64]
RESERVOIR OIL CAPACITY (CU. IN. [CU. CM.])	152.0 [2.491]
RESERVOIR USABLE OIL CAPACITY (CU. IN. [CU. CM.])	137.0 [2245]
LP MAXIMUM PRESSURE (PSI [BAR])	1,400 [97]
HP MAXIMUM PRESSURE (PSI [BAR])	10,000 [700]
LP VOLUME PER STROKE (CU. IN. [CU. CM.])	0.650 [10,7]
HP VOLUME PER STROKE (CU. IN. [CU. CM.])	0.160 [2,6]
OIL PORT (IN.)	3
A (IN. [MM.])	7.75 [197]
B (IN. [MM.])	20.50 [521]
C (IN. [MM.])	4.88 [124]
D (IN. [MM.])	6.88 [175]
E (IN. [MM.])	22.75 [578]
F (IN. [MM.])	3.88 [99]
G (IN. [MM.])	3.00 [76]
H (IN. [MM.])	19.75 [502]
J (DEG.)	39
K (IN. [MM.])	0.31 [8]
L (IN. [MM.])	3.75 [95]
M	3
N (IN. [MM.])	2.25 [57]
WEIGHT (LBS. [KG.])	26.7 [11,8]
