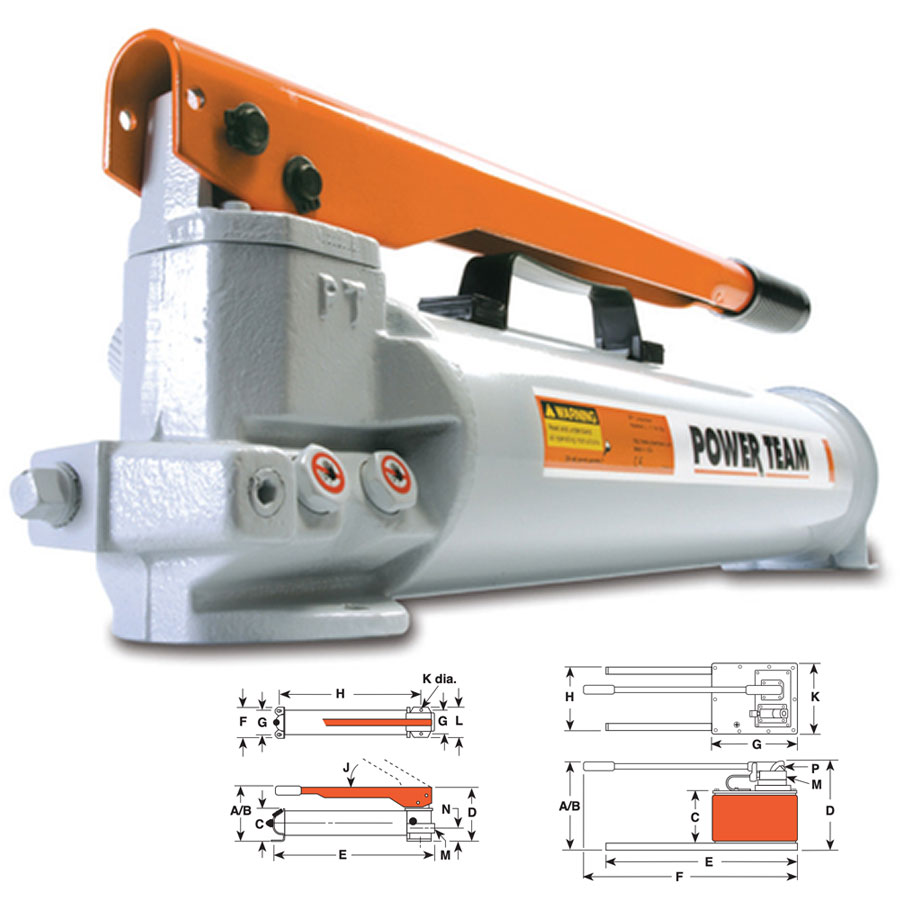

SPX FLOW Power Team P159 Hydraulic Hand Pump, Two Speed, .160-2.6 Cubic Inch Stroke
SPX FLOW Power Team P159 Hydraulic Hand Pump, Two Speed, .160-2.6 Cubic Inch Stroke
Order No. SPX-P159
List Price: $862.99
Price: $824.58
Availability: In Stock

BEST SUITED FOR APPLICATIONS WHERE THERE IS LITTLE OR NO FREE TRAVEL.

  • Rugged all metal construction for strength and durability that won't burn through in welding environments
  • Heavy-duty, formed metal handle provides less flex, and less operator fatigue than round or composite handles
  • Fill cap seal acts as safety valve preventing over-pressurizing of reservoir
  • Relief valve inboard of check valve prevents loads from drifting down
  • Large valve knob gives added control for slowly metering loads down

Specifications

FOR USE WITH CYLINDER TYPESingle-Acting
SPEED2
HANDLE EFFORT (LBS. [KG.])140.0 [64]
RESERVOIR OIL CAPACITY (CU. IN. [CU. CM.])152.0 [2.491]
RESERVOIR USABLE OIL CAPACITY (CU. IN. [CU. CM.])137.0 [2245]
LP MAXIMUM PRESSURE (PSI [BAR])325 [22]
HP MAXIMUM PRESSURE (PSI [BAR])10,000 [700]
LP VOLUME PER STROKE (CU. IN. [CU. CM.])2.600 [42,6]
HP VOLUME PER STROKE (CU. IN. [CU. CM.])0.160 [2,6]
OIL PORT (IN.)3
A (IN. [MM.])7.75 [197]
B (IN. [MM.])20.50 [521]
C (IN. [MM.])4.88 [124]
D (IN. [MM.])6.88 [175]
E (IN. [MM.])22.75 [578]
F (IN. [MM.])3.88 [99]
G (IN. [MM.])3.00 [76]
H (IN. [MM.])19.75 [502]
J (DEG.)39
K (IN. [MM.])0.31 [8]
L (IN. [MM.])3.75 [95]
M3
N (IN. [MM.])2.25 [57]
WEIGHT (LBS. [KG.])26.2 [11,8]

  • Weight:  26.20 lbs
