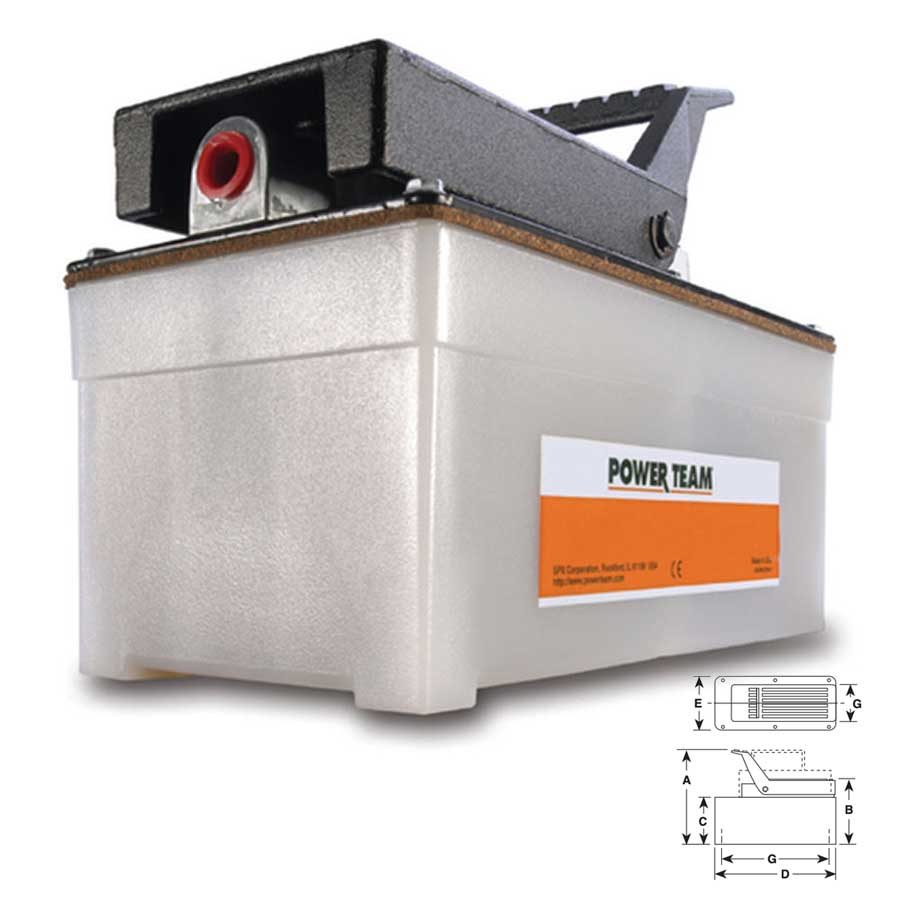

SPX FLOW Power Team PA6 10,000 PSI Hydraulic Foot Pump, Single Speed
SPX FLOW Power Team PA6 10,000 PSI Hydraulic Foot Pump, Single Speed
Order No. SPX-PA6
List Price: $986.99
Price: $943.07
Availability: In Stock

COMPACT, LIGHTWEIGHT AND PORTABLE. SINGLE-SPEED PUMPS DESIGNED TO DRIVE SINGLE-ACTING CYLINDERS.

    The power unit of choice for major manufacturers of auto body, frame straighteners and other equipmentOperate at 40-100 psi shop air pressure at the pumpdBA 85 at 10,000 psiServiceable pump motor is not a "throw away," providing economical repairPermanently vented reservoir capInternal relief valve protects circuit components, air inlet filter protects motor

Specifications

AIR SUPPLY REQUIRED (PSI [BAR])40-120 [3 - 8]
RESERVOIR CAPACITY (CU. IN. [L])105 [1,7]
RESERVOIR USABLE CAPACITY (CU. IN. [L])98 [1,6]
OIL PORT (IN.)3
A (IN. [MM.])7.75 [197]
B (IN. [MM.])5.88 [149]
C (IN. [MM.])4.38 [111]
D (IN. [MM.])9.50 [241]
E (IN. [MM.])5.00 [127]
G (IN. [MM.])4 x 9 [102 x 229]
WEIGHT (LBS. [KG.])14.00 [6,3]

  • Weight:  14.00 lbs
