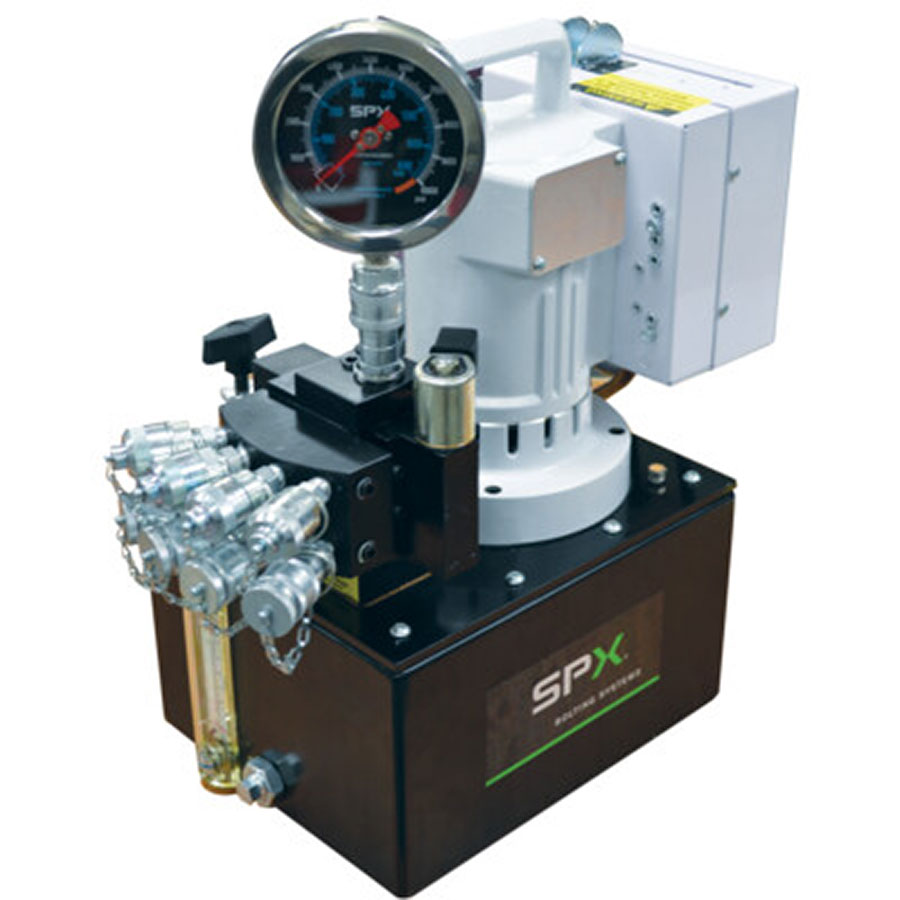

SPX FLOW Power Team PE55TWP-BS 700 BAR (10,000 PSI) Classic Series Electric Hydraulic Pump
SPX FLOW Power Team PE55TWP-BS 700 BAR (10,000 PSI) Classic Series Electric Hydraulic Pump
Order No. SPX-PE55TWP-BS

List Price: $8,328.00
Price: $7,957.41
Availability: In Stock

The PE55TWP-BS has been the market leading electric pump for over 30 years & is therefore tried & tested. A simple, light-weight design with a recent upgrade that has created a cost-effective workhorse.

Quality means Lower Life-Cycle Costs:

  • Over 100,000 cycles
  • Continuous duty up to 50°C (122°F) ambient
  • Proven design = Proven reliability

Enhanced Usability:

  • Two Speed High Performance pump
  • Retract side internal relief valve protects tool
  • Hand remote
  • Four-tool manifold (-4 models only) allow use of up to four tools simultaneously
  • 4" calibration capable gauge
  • Use with single or double acting tools

Designed with Safety in Mind:

  • Easily adjusted pressure regulator (relief) valve
  • 103 bar (1,500 psi) pressure retract relief valve

Specifications

Size (L x W x H)18.5" x 9.5" x 19.2"
Weight65 lbs
Maximum Oil Capacity6.8 L (1.8 Gallons) [to fill line]
5.3 L (1.4 Gallons) [usable]
Operating Environment-13°F to +122°F
Sound Level:87-92 dBA (max)
Pressure0 - 700 bar (0 - 10,000 psi)
Typical Flow11.5 L/min - 0.9 L/min
(704 in3/min - 56 in3/min)
Power1-1/8 hp Universal Motor
110/115V - 50/60 Hz (25 amps)
220/230V - 50/60 Hz (13 amps)

  • Weight:  65.00 lbs
