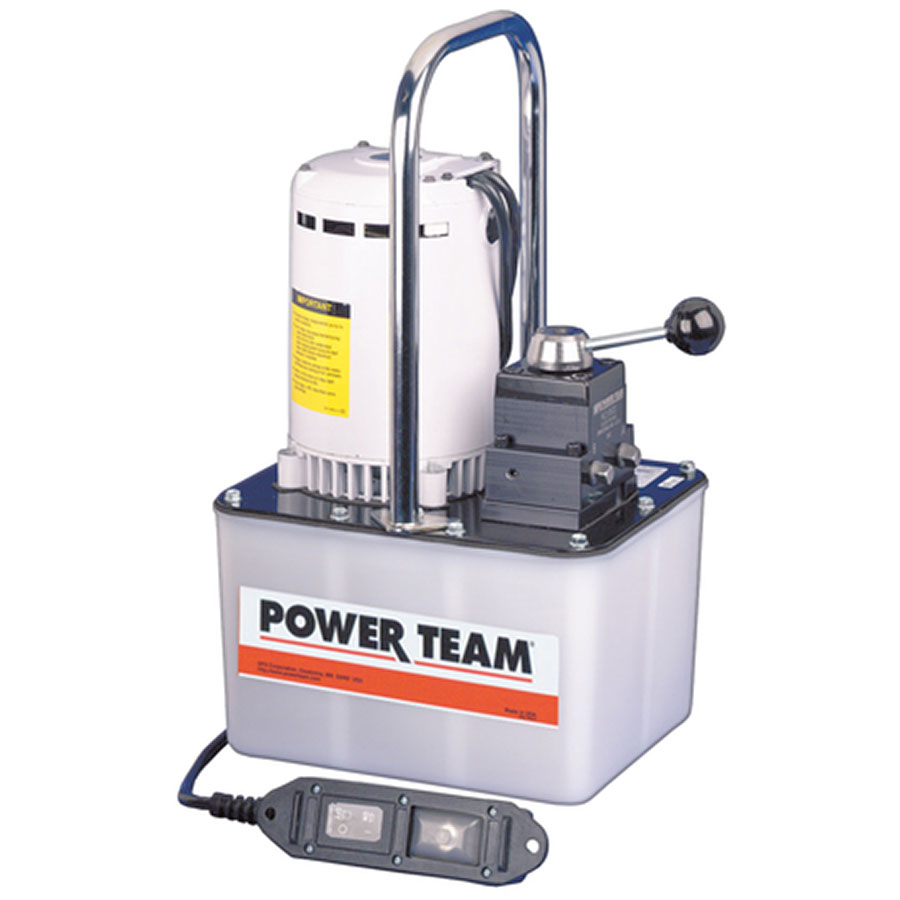

SPX FLOW Power Team PE174 Electric Hydraulic Pump, Single/Double-Acting, 4-Way, 1/2 HP, 700 BAR (10,000 PSI)
SPX FLOW Power Team PE174 Electric Hydraulic Pump, Single/Double-Acting, 4-Way, 1/2 HP, 700 BAR (10,000 PSI)
Order No. SPX-PE174
List Price: $3,627.98
Price: $3,466.53
Availability: In Stock

FOR MAINTENANCE AND CONSTRUCTION APPLICATIONS.

  • For use with single or double-acting cylinders at operating pressures up to 10,000 psi.
  • For intermittent duty; starts under full load.
  • Equipped with 1⁄2 hp, 3,450 rpm, single-phase, thermal protected induction motor; 10 ft. remote control cord
  • Low amperage draw; small generators and low amperage circuits can be used as power source.
  • Extremely quiet noise level (67-81 dBA).

Specifications

FOR USE WITH CYLINDER TYPESingle and Double-Acting
VALVE TYPE4-Way
VALVE FUNCTIONAdvance
CONTROL SWITCHRemote Motor Control (10ft.) on
MOTOR1
AMP DRAW (115 V @ 10,000 PSI)10 Amps
RPM3450
RESERVOIR USABLE OIL CAPACITY (CU. IN. [L])295 [4,7]
MAXIMUM PRESSURE OUTPUT (PSI [BAR])10,000 [700]
DBA @ IDLE AND 10,000 PSI [700 BAR]67
OIL DELIVERY (CU. IN./MIN. @ 0 PSI [L/MIN. @ 0 BAR])290 [4,6]
OIL DELIVERY (CU. IN./MIN. @ 100 PSI [L/MIN. @ 7 BAR])190 [2,5]
OIL DELIVERY (CU. IN./MIN. @ 5,000 PSI [L/MIN. @ 350 BAR])20 [0,3]
OIL DELIVERY (CU. IN./MIN. @ 10,000 PSI [L/MIN. @ 700 BAR])16 [0,2]
WEIGHT WITH OIL (LBS. [KG.])45 [20,5]

  • Weight:  45.00 lbs
