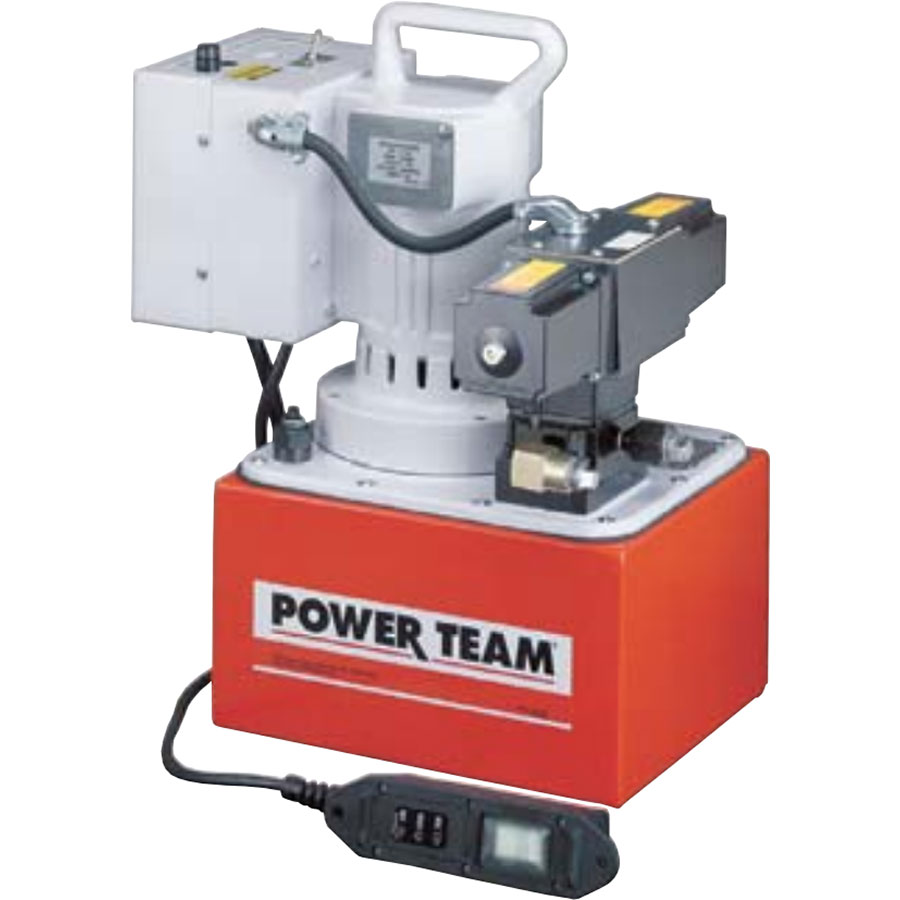

SPX FLOW Power Team PE554S Electric Hydraulic Pump, Double-Acting, 12000 RPM, 700 BAR (10,000 PSI)
SPX FLOW Power Team PE554S Electric Hydraulic Pump, Double-Acting, 12000 RPM, 700 BAR (10,000 PSI)
Order No. SPX-PE554S
List Price: $7,719.00
Price: $7,375.50
Availability: In Stock

A HEAVY DUTY PUMP FOR MULTIPLE APPLICATIONS: HEAVY CONSTRUCTION, CONCRETE STRESSING WITH LOW VOLTAGE STARTING POTENTIAL.

  • 1-1/8 hp, 12,000 rpm, 110/115 volt, 50/60 Hz universal motor; draws 25 amps at full load, starts at reduced voltage. CSA rated for intermittent duty.
  • 10 foot remote motor control
  • True unloading valve achieves greater pump efficiency, allowing higher flow at maximum pressure.
  • Light weight and portable. Best weight-to-performance ratio of all Power Team pumps.

Specifications

FOR USE WITH CYLINDER TYPEDouble-Acting
VALVE FUNCTIONAdvance
CONTROL SWITCHRemote Motor
MOTOR11
AMP DRAW (115 V @ 10,000 PSI [220 V @ 700 BAR])25 Amps [13 Amps]
RPM12000
RESERVOIR USABLE OIL CAPACITY (CU. IN. [L])525 [8,4]
MAXIMUM PRESSURE OUTPUT (PSI [BAR])10,000 [700]
DBA @ IDLE AND 10,000 PSI [700 BAR]90
OIL DELIVERY (CU. IN./MIN. @ 0 PSI [L/MIN. @ 0 BAR])704 [11,3]
OIL DELIVERY (CU. IN./MIN. @ 700 PSI [L/MIN. @ 50 BAR])440 [7,1]
OIL DELIVERY (CU. IN./MIN. @ 5,000 PSI [L/MIN. @ 350 BAR])74 [1,2]
OIL DELIVERY (CU. IN./MIN. @ 10,000 PSI [L/MIN. @ 700 BAR])56 [0,9]
WEIGHT WITH OIL (LBS. [KG.])65 [29,5]

  • Weight:  65.00 lbs
