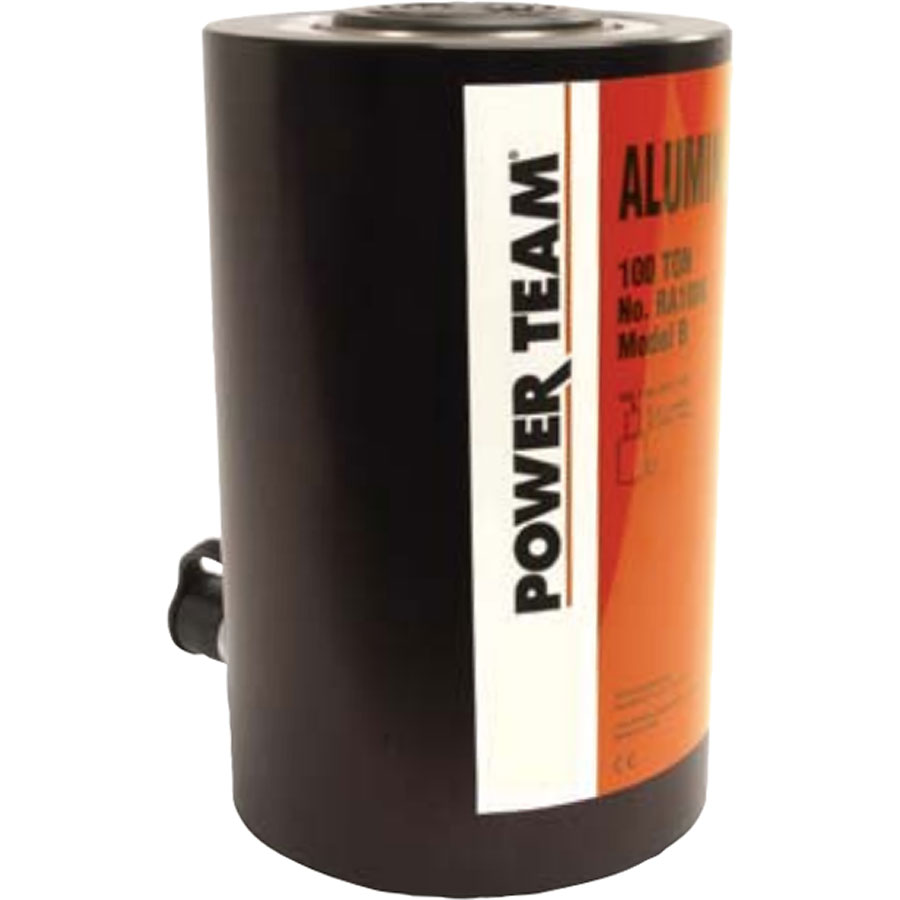

SPX FLOW Power Team RA1006 100 Ton Aluminum Hydraulic Single Acting Cylinder/Ram, 6.25" Stroke, 18" Retracted, 11.75" Extended
SPX FLOW Power Team RA1006 100 Ton Aluminum Hydraulic Single Acting Cylinder/Ram, 6.25" Stroke, 18" Retracted, 11.75" Extended
Order No. SPX-RA1006
List Price: $4,341.00
Price: $4,147.83
Availability: In Stock

HALF THE WEIGHT OF EQUAL CAPACITY STEEL CYLINDERS.

  • Aluminum body resists sparking in explosive environments
  • Hard coated aluminum piston rod and cylinder bore resist wear and corrosion
  • Grooved piston top helps keep the load from sliding on top of piston
  • Designed for jacking and other non-production operations
  • Equipped with carrying handles

Specifications

RETRACTED HEIGHT (IN. [MM])11.75 [298,5]
EXTENDED HEIGHT (IN. [MM])18.00 [457,2]
OUTSIDE DIAMETER (IN. [MM])7.38 [187,3]
BASE TO PORT (IN. [MM])1.19 [30,2]
PISTON ROD DIAMETER (IN. [MM])4.13 [104,8]
ROD PROTRUSION (IN. [MM])0.13 [3,2]
BORE DIAMETER (IN. [MM])5.13 [130,2]
CYLINDER CAPACITY (TONS)100
CYLINDER EFFECTIVE AREA (SQ. IN. [CM²]20.62 [133,0]
INTERNAL PRESSURE AT CAPACITY (PSI)9696
OIL CAPACITY (CU. IN. [CM³])129.00 [2.116,0]
STROKE (IN. [MM])6.25 [158,8]
TONS AT 10,000 PSI [METRIC TONS AT 700 BAR]103.10 [93,5]
WEIGHT (LBS. [KG])49.90 [22,6]

  • Weight:  49.90 lbs
