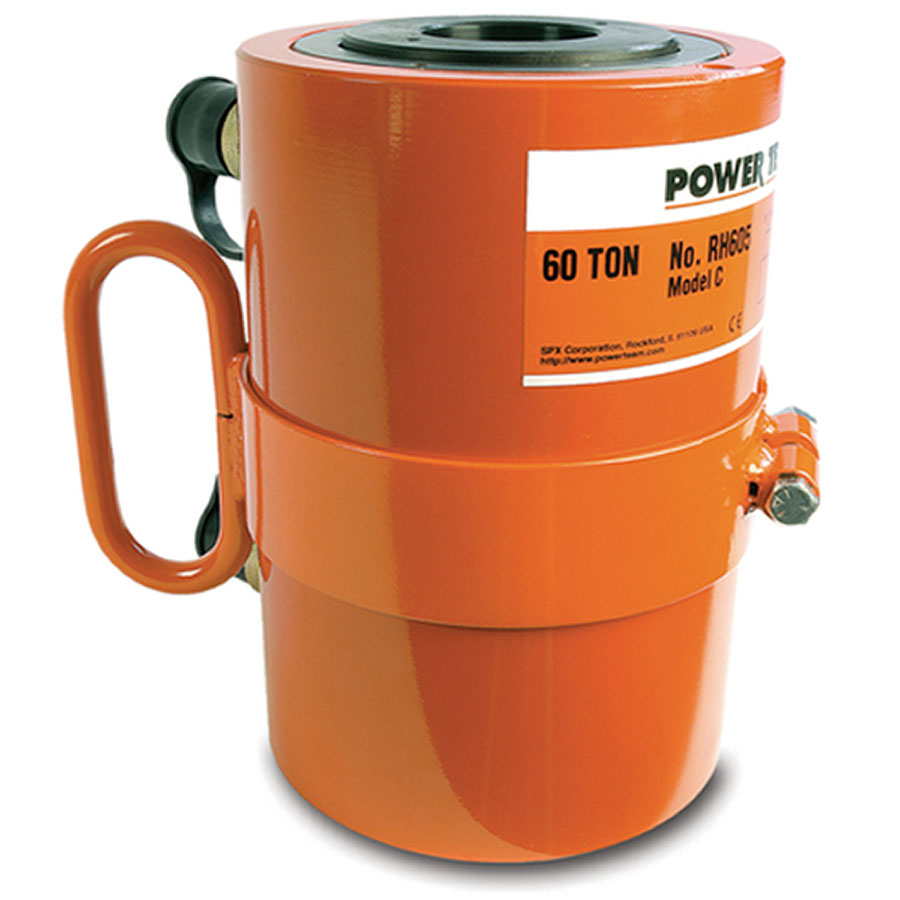

SPX FLOW Power Team RH605 60 Ton Hydraulic Single Acting Cylinder Center Hole Cylinder, 5" Stroke, 9.5" Retracted, 14.5" Extended
SPX FLOW Power Team RH605 60 Ton Hydraulic Single Acting Cylinder Center Hole Cylinder, 5" Stroke, 9.5" Retracted, 14.5" Extended
Order No. SPX-RH605

List Price: $3,608.00
Price: $3,447.45
Availability: In Stock

IDEAL FOR PULLING AND TENSIONING OF CABLES, ANCHOR BOLTS, FORCING SCREWS, ETC.

  • Supplied with carrying handles
  • Interchangeable piston head inserts provide versatility of application
  • Withstands full "dead-end" loads
  • Corrosion resistant standpipe has "Power Tech" treatment
  • Furnished with a 9796 3/8" NPT female half coupler

Specifications

RETRACTED HEIGHT (IN. [MM])9.50 [241,3]
EXTENDED HEIGHT (IN. [MM])14.50 [368,3]
OUTSIDE DIAMETER (IN. [MM])6.53 [165,9]
COLLAR THREAD (IN.)
PISTON COLLAR THREAD LENGTH (IN. [MM])
BASE TO PORT (IN. [MM])1.00 [25,4]
CYLINDER TOP TO PORT (IN. [MM])1.75 [44,5]
PISTON ROD DIAMETER (IN. [MM])4.00 [101,6]
CENTER HOLE DIAMETER (IN. [MM])2.13 [54,0]
INSERT THREAD SIZE (IN.)3-12
CYLINDER EFFECTIVE AREA - PULL (SQ. IN. [CM²]
5.15 [33,2]
CYLINDER EFFECTIVE AREA - PUSH (SQ. IN. [CM²]
12.31 [79,4]
CYLINDER CAPACITY - PULL (TONS)
25
CYLINDER CAPACITY - PUSH (TONS)
60
INTERNAL PRESSURE AT CAPACITY - PULL (PSI)
9709
INTERNAL PRESSURE AT CAPACITY - PUSH (PSI)
9750
MOUNTING HOLES AND BOLT CIRCLE (IN. [MM])1
OIL CAPACITY - PULL (CU. IN. [CM³]) 25.77 [423,0]
OIL CAPACITY - PUSH (CU. IN. [CM³]) 61.55 [1.009,0]
STROKE (IN. [MM])5.00 [127,0]
TONS AT 10,000 PSI - PULL [METRIC TONS AT 700 BAR - PULL] 27.70 [25,1]
TONS AT 10,000 PSI - PUSH [METRIC TONS AT 700 BAR - PUSH] 61.50 [55,8]
WEIGHT (LBS. [KG])73.00 [33,1]

  • Weight:  73.00 lbs
