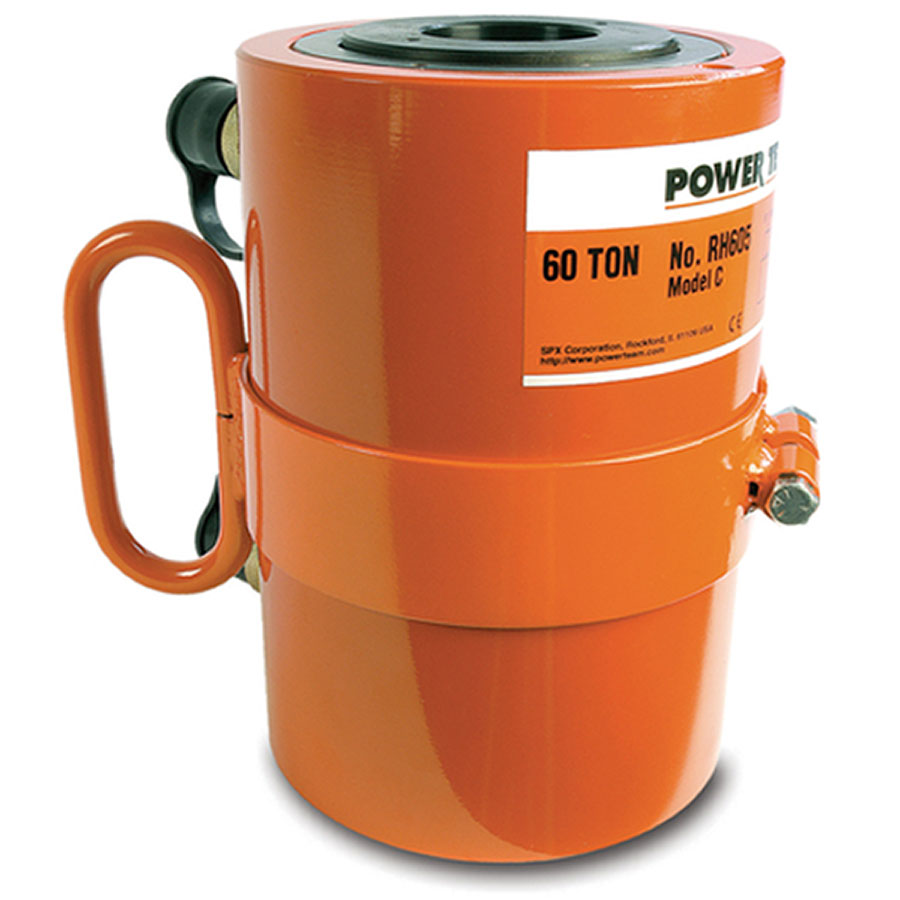

SPX FLOW Power Team RH606 60 Ton Hydraulic Single Acting Cylinder Center Hole Cylinder, 6" Stroke, 12.25" Retracted, 18.25" Extended
SPX FLOW Power Team RH606 60 Ton Hydraulic Single Acting Cylinder Center Hole Cylinder, 6" Stroke, 12.25" Retracted, 18.25" Extended
Order No. SPX-RH606
List Price: $3,674.00
Price: $3,510.51
Availability: In Stock

IDEAL FOR PULLING AND TENSIONING OF CABLES, ANCHOR BOLTS, FORCING SCREWS, ETC.

  • Supplied with carrying handles
  • Interchangeable piston head inserts provide versatility of application
  • Withstands full "dead-end" loads
  • Corrosion resistant standpipe has "Power Tech" treatment
  • Furnished with a 9796 3/8" NPT female half coupler

Specifications

RETRACTED HEIGHT (IN. [MM])12.25 [311,2]
EXTENDED HEIGHT (IN. [MM])18.25 [463,6]
OUTSIDE DIAMETER (IN. [MM])6.25 [158,8]
COLLAR THREAD (IN.)6 1
PISTON COLLAR THREAD LENGTH (IN. [MM])2.50 [63,5]
BASE TO PORT (IN. [MM])1.00 [25,4]
PISTON ROD DIAMETER (IN. [MM])3.59 [91,3]
CENTER HOLE DIAMETER (IN. [MM])2.13 [54,0]
INSERT THREAD SIZE (IN.)3-12
CYLINDER CAPACITY (TONS)60
CYLINDER EFFECTIVE AREA (SQ. IN. [CM²]12.31 [79,4]
INTERNAL PRESSURE AT CAPACITY (PSI)9750
MOUNTING HOLES AND BOLT CIRCLE (IN. [MM])1
OIL CAPACITY (CU. IN. [CM³])73.86 [1.211,0]
STROKE (IN. [MM])6.00 [152,4]
TONS AT 10,000 PSI [METRIC TONS AT 700 BAR]61.60 [55,9]
WEIGHT (LBS. [KG])78.00 [35,4]

  • Weight:  78.00 lbs
