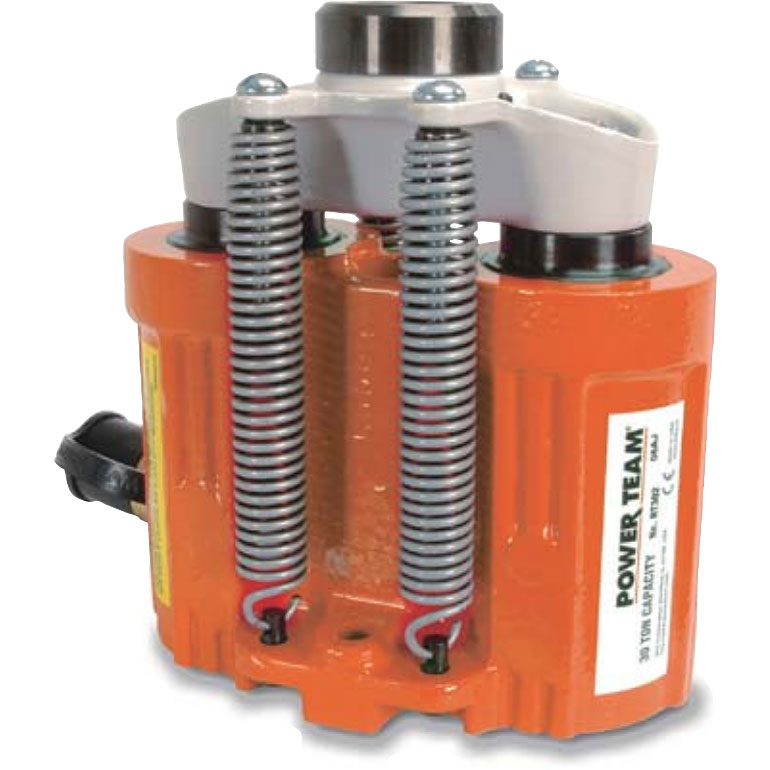

SPX FLOW Power Team RT302 30 Ton Hydraulic Single Acting and Double Acting Center Hole Cylinders, 2.5" Stroke
SPX FLOW Power Team RT302 30 Ton Hydraulic Single Acting and Double Acting Center Hole Cylinders, 2.5" Stroke
Order No. SPX-RT302
List Price: $1,500.00
Price: $1,433.25
Availability: In Stock

IDEAL FOR PULLING AND PRESSING.

  • A proven design; used throughout the industry for over 45 years
  • Cylinders withstand full "dead-end" loads
  • Compact design: ideal for applications in which space is limited
  • Basic head can be changed from a tapped hole to plain hole by simply changing insert
  • Pistons have "Power Tech" treatment for corrosion and abrasion resistance
  • Each cylinder complete with threaded cylinder head insert, cylinder half coupler and cylinder attaching screws

Specifications

RETRACTED HEIGHT (IN. [MM])8.44 [214,3]
EXTENDED HEIGHT (IN. [MM])10.94 [277,8]
SINGLE-ACTING OUTSIDE DIAMETER (IN. [MM])4.25 [108,0]
DOUBLE-ACTING OUTSIDE DIAMETER (IN. [MM])7.50 [190,5]
LOAD CAP DIAMETER (IN. [MM])2.25 [57,2]
LOAD CAP THREAD (IN.)1 1
CENTER HOLE DIAMETER (IN. [MM])1.30 [32,9]
MOUNTING HOLE LOCATION (IN. [MM])1.81 [46,0]
CYLINDER EFFECTIVE AREA (SQ. IN. [CM²]6.28 [40,5]
CYLINDER CAPACITY - PUSH (TONS)30
INTERNAL PRESSURE AT CAPACITY (PSI)9554
MOUNTING HOLE (IN. [MM])0.47 [11,9]
OIL CAPACITY - PUSH (CU. IN. [CM³])15.70 [258,0]
OIL CAPACITY - RETURN (CU. IN. [CM³])–
STROKE (IN. [MM])2.50 [63,5]
TONS AT 10,000 PSI [METRIC TONS AT 700 BAR]31.40 [28,5]
WEIGHT (LBS. [KG])28.20 [12,8]

  • Weight:  28.20 lbs
