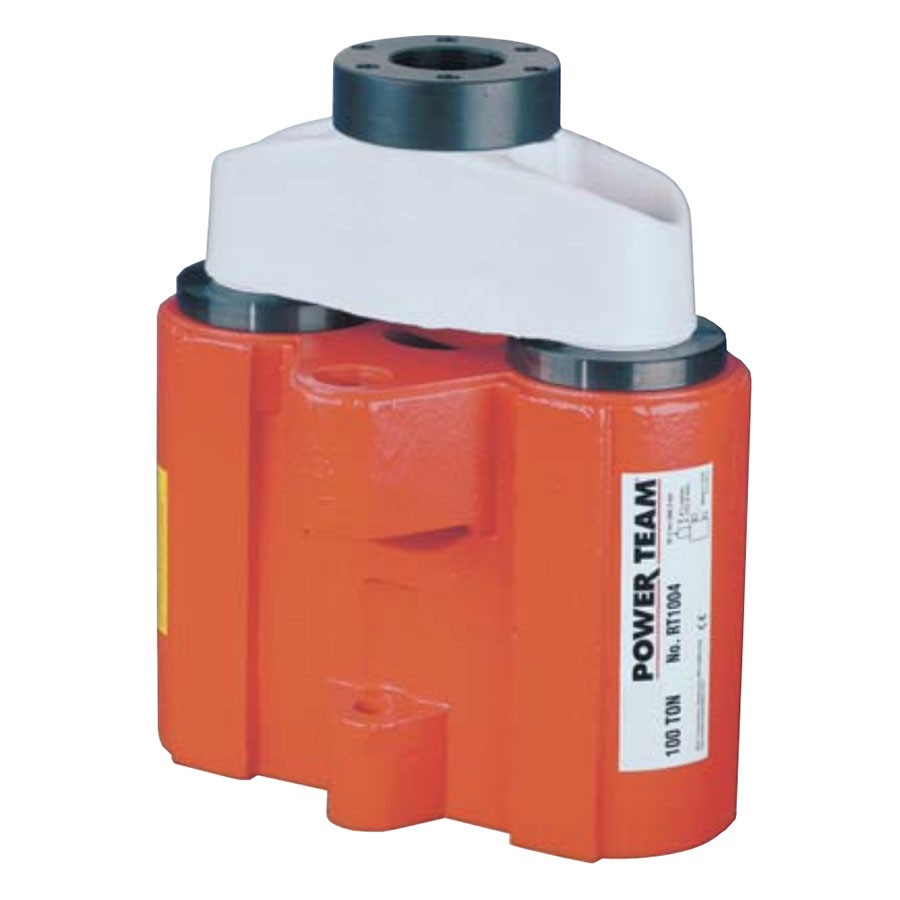

SPX FLOW Power Team RT1004 100 Ton Hydraulic Single Acting and Double Acting Center Hole Cylinders, 4.875" Stroke, 15.13" Retracted, 20" Extended
SPX FLOW Power Team RT1004 100 Ton Hydraulic Single Acting and Double Acting Center Hole Cylinders, 4.875" Stroke, 15.13" Retracted, 20" Extended
Order No. SPX-RT1004
List Price: $6,239.00
Price: $5,961.36
Availability: In Stock

IDEAL FOR PULLING AND PRESSING.

  • A proven design; used throughout the industry for over 45 years
  • Cylinders withstand full "dead-end" loads
  • Compact design: ideal for applications in which space is limited
  • Basic head can be changed from a tapped hole to plain hole by simply changing insert
  • Pistons have "Power Tech" treatment for corrosion and abrasion resistance
  • Each cylinder complete with threaded cylinder head insert, cylinder half coupler and cylinder attaching screws
  • The RT1004 has a bypass when full stroke is reached, preventing over-pressurization of the cylinder

Specifications

RETRACTED HEIGHT (IN. [MM])15.13 [384,2]
EXTENDED HEIGHT (IN. [MM])20.00 [508,0]
OUTSIDE DIAMETER (IN. [MM])10.50 [266,7]
OUTSIDE DIAMETER (IN. [MM])13.25 [336,6]
LOAD CAP DIAMETER (IN. [MM])4.75 [120,7]
LOAD CAP THREAD (IN.)2 1
CENTER HOLE DIAMETER (IN. [MM])2.56 [65,1]
MOUNTING HOLE LOCATION (IN. [MM])2.88 [73,0]
CYLINDER EFFECTIVE AREA (SQ. IN. [CM²]19.24* [124,1 *]
CYLINDER CAPACITY - PUSH (TONS)100
INTERNAL PRESSURE AT CAPACITY (PSI)10395
MOUNTING HOLE (IN. [MM])0.78 [19,8]
OIL CAPACITY - PUSH (CU. IN. [CM³])96.50 [1.583,0]
OIL CAPACITY - RETURN (CU. IN. [CM³])63.20 [1.037,0]
STROKE (IN. [MM])4.88 [123,8]
TONS AT 10,000 PSI [METRIC TONS AT 700 BAR]96.20 [87,3]
WEIGHT (LBS. [KG])160.00 [72,6]

  • Weight:  160.00 lbs
