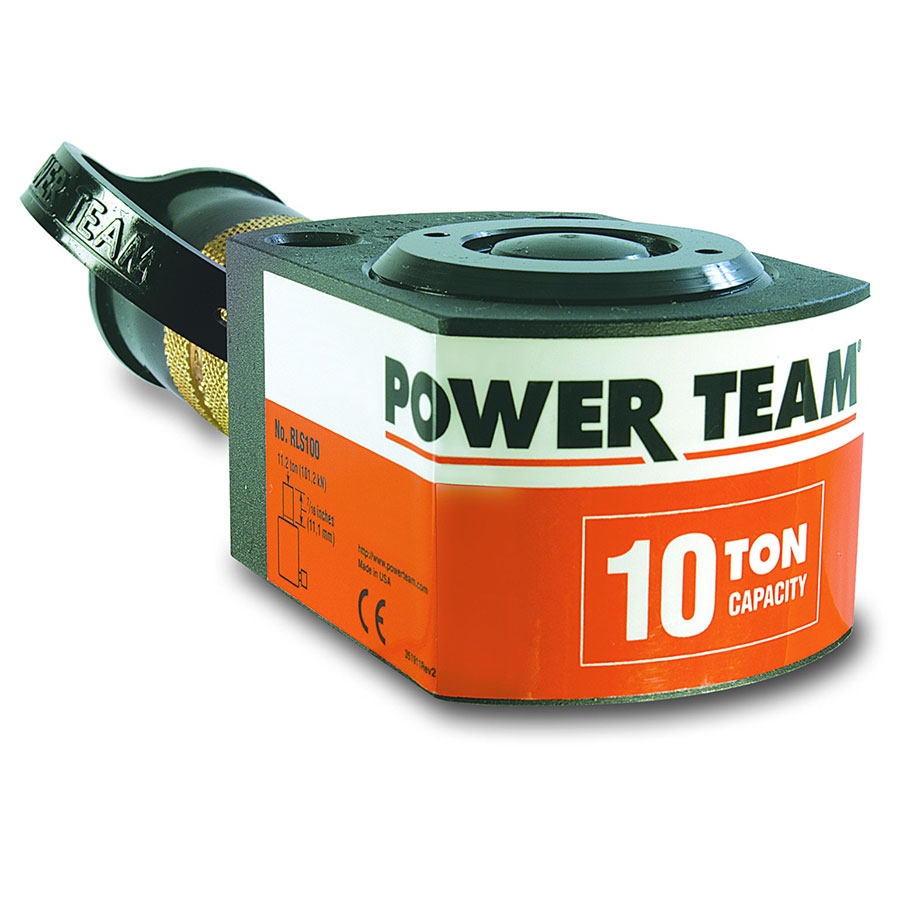

SPX FLOW Power Team RLS100 10 Ton Hydraulic Single Acting Low Profile Spring Return Cylinder, 7/16" Stroke
SPX FLOW Power Team RLS100 10 Ton Hydraulic Single Acting Low Profile Spring Return Cylinder, 7/16" Stroke
Order No. SPX-RLS100
List Price: $601.00
Price: $574.26
Availability: In Stock

IDEAL FOR CONFINED AREAS FROM 1-5/8” TO 4” CLEARANCE.

  • Cylinder body, piston and gland nut "Power Tech" treated for corrosion and abrasion resistance (see page 8)
  • Standard domed piston rod (5-30 ton) or swivel cap (50-150 ton) minimize effects of off-center loading
  • Unique heavy duty spring provides fast piston return
  • A 9796 3/8" NPTF female half coupler is standard with each cylinder (the RLS50 has a 3/8" coupler which is not angled). Oil ports are 3/8" NPTF.
  • Couplers on all cylinders, except RLS50, are angled upward for extra clearance

Specifications

RETRACTED HEIGHT (IN. [MM])1.75 [44,5]
EXTENDED HEIGHT (IN. [MM])2.19 [55,6]
OUTSIDE DIAMETER (IN. [MM])2.19 [55,6]
OUTSIDE DIAMETER (IN. [MM])3.25 [82,6]
BASE TO PORT (IN. [MM])0.63 [15,9]
PISTON ROD DIAMETER (IN. [MM])0.75 [19,1]
MOUNTING HOLE LOCATION (IN. [MM])0.69 [17,5]
MOUNTING HOLE LOCATION (IN. [MM])1.44 [36,5]
MOUNTING HOLE LOCATION (IN. [MM])0.38 [9,5]
MOUNTING HOLE LOCATION (IN. [MM])1.31 [33,3]
BORE DIAMETER (IN. [MM])1.69 [42,9]
CYLINDER CAPACITY (TONS)10
CYLINDER EFFECTIVE AREA (SQ. IN. [CM²]2.24 [14,4]
INTERNAL PRESSURE AT CAPACITY (PSI)8943
OIL CAPACITY (CU. IN. [CM³])1.00 [17,0]
STROKE (IN. [MM])0.44 [11,1]
TONS AT 10,000 PSI [METRIC TONS AT 700 BAR]11.18 [10,1]
WEIGHT (LBS. [KG])3.30 [1,5]

  • Weight:  3.30 lbs
