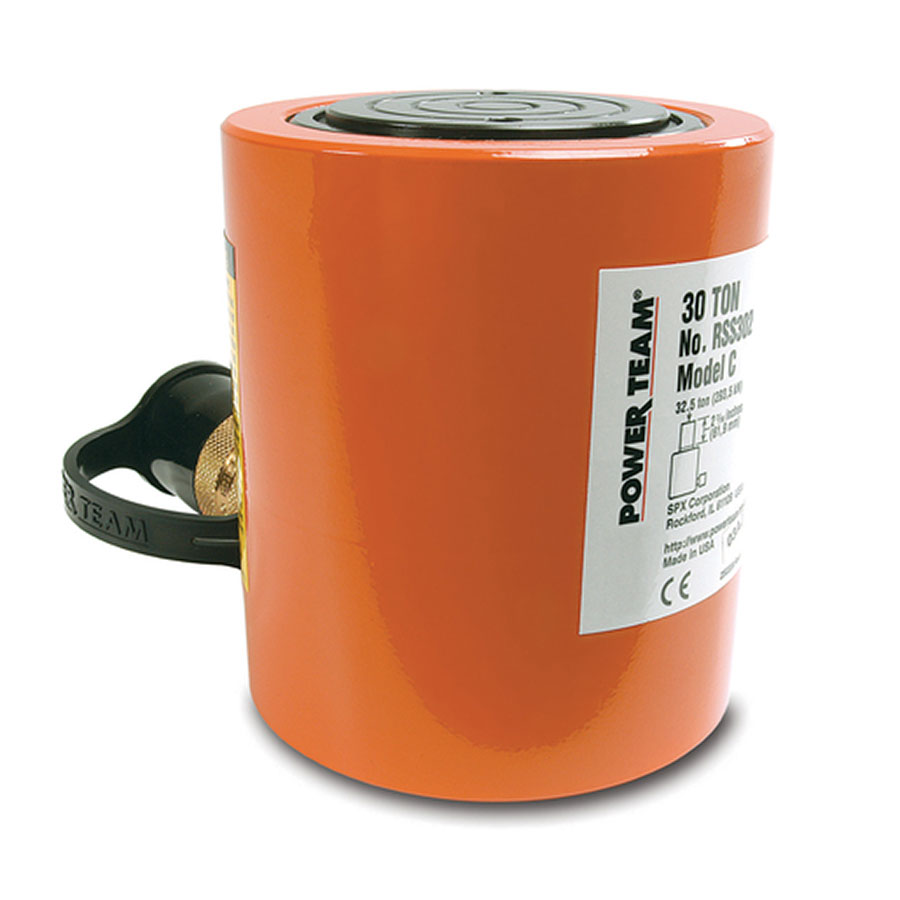

SPX FLOW Power Team RSS302 30 Ton Hydraulic Single Acting Spring Return Shorty Cylinder, 2-7/16" Stroke
SPX FLOW Power Team RSS302 30 Ton Hydraulic Single Acting Spring Return Shorty Cylinder, 2-7/16" Stroke
Order No. SPX-RSS302
List Price: $1,266.25
Price: $1,129.24
Availability: In Stock

IDEAL FOR CONFINED AREAS FROM 3-1/2" TO 11-7/16" CLEARANCE.

  • Power Tech plated piston rods and gland nuts resist scoring and corrosion.
  • Heavy duty return spring (except for double acting models) provides fast piston return & low collapsed height.
  • Coupler on 10 thru 50 ton models is angled upward 5° for added clearance.
  • Grooved piston top keeps load from sliding.
  • Cylinders can be "dead-ended" at full capacity.
  • Removable carrying handles on 100 ton and 250 ton models.

Specifications

RETRACTED HEIGHT (IN. [MM])4.63 [117,5]
EXTENDED HEIGHT (IN. [MM])7.06 [179,4]
OUTSIDE DIAMETER (IN. [MM])4.00 [101,6]
BASE TO PORT (IN. [MM])0.63 [15,9]
PISTON ROD DIAMETER (IN. [MM])2.50 [63,5]
BORE DIAMETER (IN. [MM])2.88 [73,0]
CYLINDER CAPACITY (TONS)30
CYLINDER EFFECTIVE AREA - PUSH (SQ. IN. [CM²]6.49 [41,9]
INTERNAL PRESSURE AT CAPACITY - PUSH (PSI)9243
OIL CAPACITY - PUSH (CU. IN. [CM³])15.80 [259,0]
OIL CAPACITY - RETURN (CU. IN. [CM³])–
STROKE (IN. [MM])2.44 [61,9]
TONS AT 10,000 PSI - PUSH [METRIC TONS AT 700 BAR - PUSH]32.50 [29,5]
WEIGHT (LBS. [KG])14.70 [6,7]

  • Weight:  14.70 lbs
