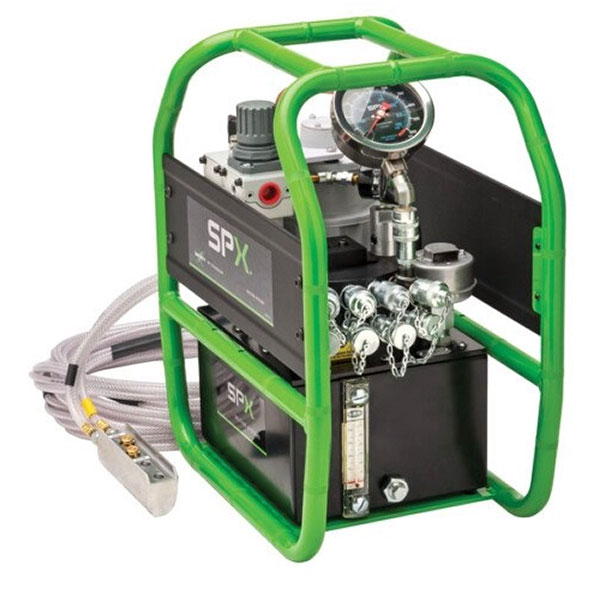

SPX FLOW Power Team RWP55-BS Classic Series Air Hydraulic Pump, 700 BAR (10,000 PSI)
SPX FLOW Power Team RWP55-BS Classic Series Air Hydraulic Pump, 700 BAR (10,000 PSI)
Order No. SPX-RWP55-BS
List Price: $8,539.00
Price: $8,159.01
Availability: In Stock

The RWP55-BS has been the market leading pump for over 30 years and is therefore tried and tested. A simple, light-weight design with a recent upgrade that has created a cost-effective workhorse.

Quality means Lower Life-Cycle Costs:

  • Over 100,000 cycles
  • Continuous duty up to 50°C (122°F) ambient
  • Proven design = Proven reliability

Enhanced Usability:

  • Powerful 3 hp motor starts under load
  • Retract side internal relief valve protects tool
  • Use with single or double acting tools. Not for lifting applications
  • 4" calibration capable gauge

Designed with Safety in Mind:

  • Easily adjusted pressure regulator (relief) valve
  • Has a retract port pressure selector 1,500 or 10,000 psi

CAUTION: This system should not be used for lifting applications.

Specifications

Size (L x W x H):16.6" x 9.5" x 19.8"
Weight:84 lb [without oil]
Maximum Oil Capacity Max:6.8 L (1.8 Gallons)
Maximum Oil Capacity Usable:5.3 L (1.4 Gallons)
Operating Environment:-25°C to +50°C (-13°F to +122°F)
Sound Level:85-92 dBA (max)
Pressure:0 - 700 bar (0 - 10,000 psi)
Typical Flow:7.6 L/min - 0.9 L/min (465 in3/min - 55 in3/min)
Air:1.4 m3/min @ 5.5 bar (50 cfm @ 80 psi)
1.65 m3/min @ 6.2 bar (58 cfm @ 90 psi)
1.89 m3/min @ 6.9 bar (67 cfm @ 100 psi)

* Values shown are with filter/regulator/lubricator.
Values will increase without filter/regulator/lubricator.

  • Weight:  84.00 lbs
