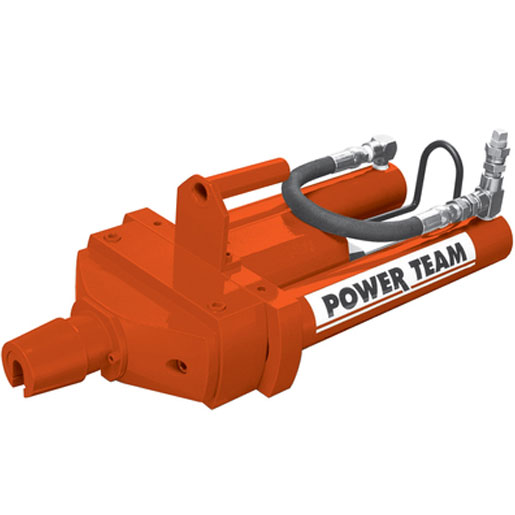

SPX FLOW Power Team SJ2010 20 Ton Post Tension Jack with Spring Seater, 0.50" Strand, 10" Stroke
SPX FLOW Power Team SJ2010 20 Ton Post Tension Jack with Spring Seater, 0.50" Strand, 10" Stroke
Order No. SPX-SJ2010

List Price: $6,481.97
Price: $6,193.52
Availability: In Stock

  • Power Team Monostrand Stressing Jacks are the most durable in the industry.
  • Ideally suited for work on slab-on-grade where dirt, heat and high volume use take their toll.
  • Service repair is simple; components are long lasting and easily replaced.
  • 3" detachable seater nose assembly easily replaced with optional 6" nose assembly.
  • The jack of choice for high rise and elevated work, thanks to fast return time and light weight.
  • All hydraulic fluid controls are internal; more efficient and safer operation during tensioning and retraction.

Specifications

Cylinder Capacity Tons20
Stroke (in.)10
Recommended PumpsPE554P/PE604T
Oil Capacity (cu. in.)45.2
Strand Diameter (in.).375-.50
Seater TypeSpring
Internal Pressure at Capacity8,948
Tons at 10,000 psi22.4
Weight (lbs.)55

  • Weight:  55.00 lbs
