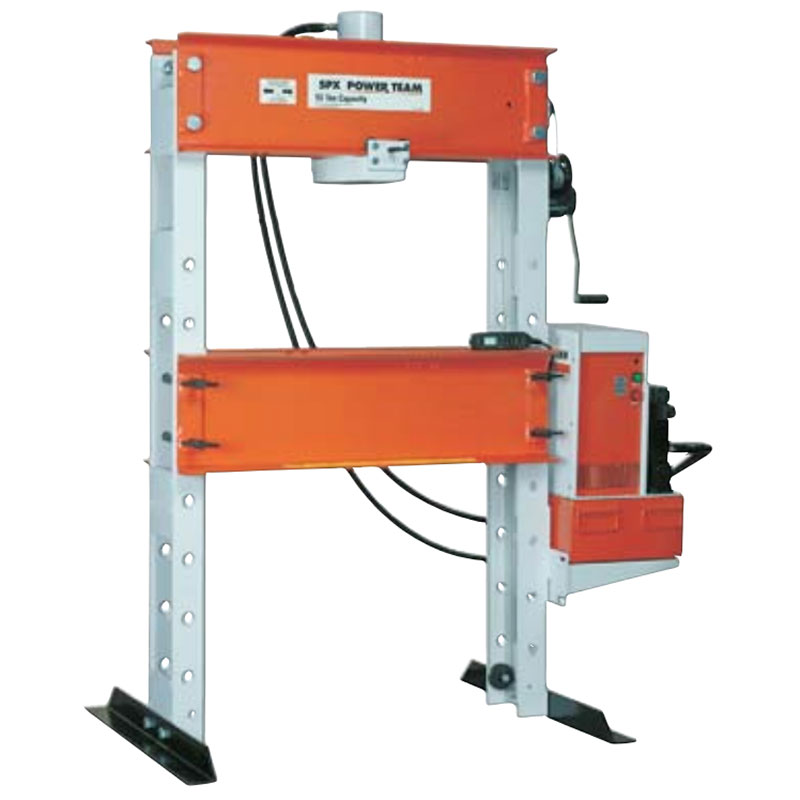

• Full off-center pressing at full rated capacity across width of upper frame without buckling or bending.
• Maximum "daylight" is 42" x 36", making positioning of even bulky work pieces easy.
• Height of press bed is easily adjusted with winch; friction brake prevents bed from dropping and handle from spinning upon release.
• Presses with single-acting cylinder offer choice of 2-speed hand operated, electric/hydraulic, or air/hydraulic pump.
• Equipped with remote control enable operator to view work from all sides with fingertip control of cylinder piston travel.
• Press can be used horizontally for special applications with user-supplied support legs.
• Hydraulic gauge and hydraulic fittings are included with presses.
• Includes PE17 Series Pump – 1/2 hp, 115 volt, 60 cycle, single phase. Also available in 230 volt, 50 cycle.

Specifications

†† Holds pressure with motor shut off. Also has an automatic dump setting. Furnished with a 10’ remote motor control.
††† Typical performance based on 100 psi and 10,000 psi pump specifications. Actual speeds may vary under operating conditions.
‡ Pump standard with press. Other Power Team pumps can be substituted. dBA at idle and 10,000 psi: PE172—67/81; PE21 Series—70; PQ60—74/76; measured at 3 foot distance, all sides.
